Product Details:
|
| Capacity: | 500KGS | Drive: | Direct Current |
|---|---|---|---|
| Hydraulic System Pressure: | 5.0MPa | Product Name: | Electric Lifting Truck |
| Power Supply: | 2X12V120ahBattery (1 Set) | Minimum Height Of Trolley: | 1200mm |
| Highlight: | 3m/min Electric Lifting Truck,25m/min Electric Lifting Truck,Gantry Welding Machine 500KGS |
||

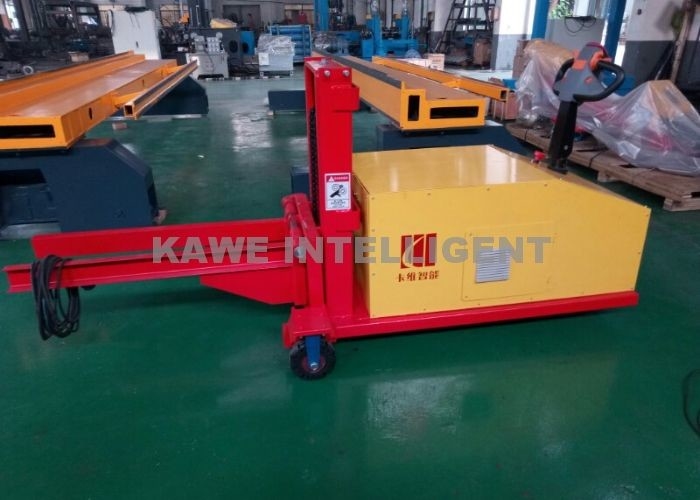

Electric Lifting Truck
This lifting truck is a special equipment designed and developed according to the requirements of users, which is used to transport the cylinder to the specified position.
| No. | Project Name | Function or parameter | Remark |
| 1 | Maximum load | 500Kg | |
| 2 | Maximum lifting stroke | 1250mm | bottom height of the bottom cylinder 1200mm |
| 3 | hydraulic system pressure | 5.0MPa | |
| 4 | Minimum height of trolley | 1200mm | Height through space 1300 |
| 5 | movement speed | 3-25m/min | stepless timing |
| 6 | drive mode | Direct current | Rear Wheel Drive |
| 7 | Power supply | 2X12V120ahBattery (1 set) | |
| 8 | Machine Weight | About 1800Kg | Weight with load |
| 9 | Overall dimensions (length * width * height) | About 2400*750*1200 |
