Product Details:
|
| Usage: | Bridge U Rib Welding | Control: | Hydraulic |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support,Field Installation | Type: | Anti Deformation |
| Warranty: | 1 Year | Machine Type: | Gantry |
| Name: | Adjustable Hydraulic Anti-deformation Frame | Application: | Bridge Steel |
| Highlight: | Adjustable Hydraulic Gantry Welding Machine,Gantry Welding Machine Anti Deformation Frame,gantry welding ISO9001 |
||

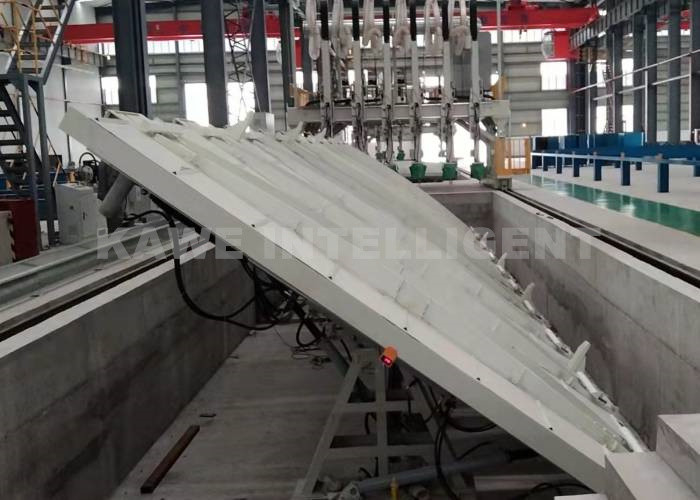

Adjustable hydraulic anti-deformation frame
The welding jigs are mainly made of 350x250 hot rolled H-beam steel, and the reverse side is equipped with rotating oil cylinder,
main technical parameters
| Load Capacity | 30T |
| Flip angle | 0～±30° |
| Anti-deformation compacting centering device | There are 10 sets at each side, the spacing is 1600mm, the pressure up and down 120mm, the pressure force is 5 tons, the center device about 1100mm/900mm moving distance, the center force is 3 tons |
| Plate element width range | 2300mm～4500mm/1800mm～3600mm |
