Product Details:
|
| Usage: | Plate Surfacing Welding | Efficiency: | High Efficient |
|---|---|---|---|
| Effective Stroke: | 1500mm | Drive Mode: | Double Drive |
| Rail Length: | 11000mm | Gantry Moving Speed: | 50--3000mm/min |
| High Light: | CNC Gantry Plane surfacing welding machine,surfacing welding machine 1500mm,surfacing welding machine double drive |
||
CNC gantry plane surfacing machine is a special equipment developed according to the needs of surfacing technology of wear-resisting layer on the surface of user's flat plate (two kinds of specifications). The equipment adopts CNC control system to realize the welding motion track of any plane surfacing shape. With special cooling welding platform, it can realize stable continuous work and high-power continuous welding.

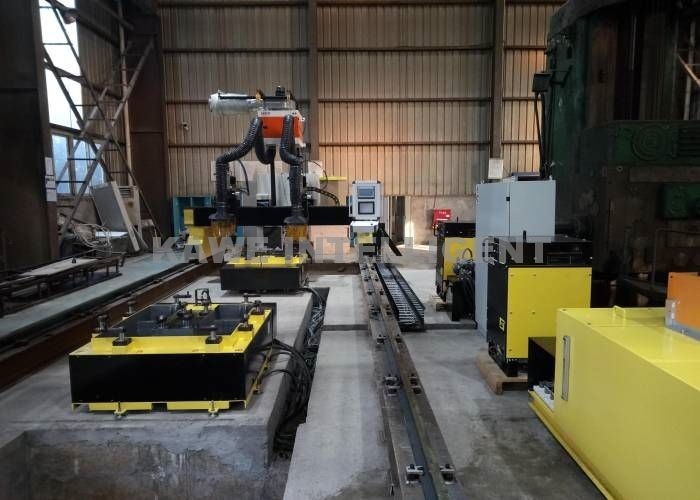

The equipment includes CNC gantry frame, gantry longitudinal track and drive rack, Esab welding system (including welding power supply, wire feeding system, welding torch and tracking system, welding gun cooling system, welding control cable, etc.), water cooling table.
The welding system provided by Esab is mounted on the CNC gantry frame (the welding power is placed on the ground against the wall), and the surface surfacing of the plate on the double workstation is completed by the CNC control system.
Main technical parameters
|
Model Parameters |
DHJ-1500 |
| Rail length | 11000mm |
| Effective travel of gantry moving (Y-axis) | 8000mm |
| drive mode | double drive,Servo + high precision reducer + rack and pinion |
| Gantry moving speed | 50--3000mm/min |
| Effective stroke of beam single slide plate | 1500mm (effective stroke of double slide plate ≥1000mm) |
| Beam slide drive mode | Servo + high precision reducer + rack and pinion |
| Moving speed of beam slide plate | 50--2000mm/min |
| Effective stroke of lifting mechanism | 420mm |
| Lifting mechanism moving speed | 50--2000mm/min |
| Driving mode of lifting mechanism | Servo + roller lead screw |
| Maximum stroke of swinging arc mechanism | 50mm |
| Linear positioning accuracy | ±0.5mm/m |
| Linear repeat positioning accuracy | ±0.5mm/m |
