Product Details:
|
| Usage: | Bridge U Rib Welding | Process: | Fillet Weld In Flat Position |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support,Field Installation | Type: | Gas Shield Welding |
| Warranty: | 1 Year | Machine Type: | Gantry |
| Name: | Bridge U Rib Multi-electrode Welding Machine | Application: | Welding Machine |
| High Light: | Multi Electrode Gantry Welding Machine,Gantry Welding Machine 8000mm,Bridge U Rib gantry welder |
||

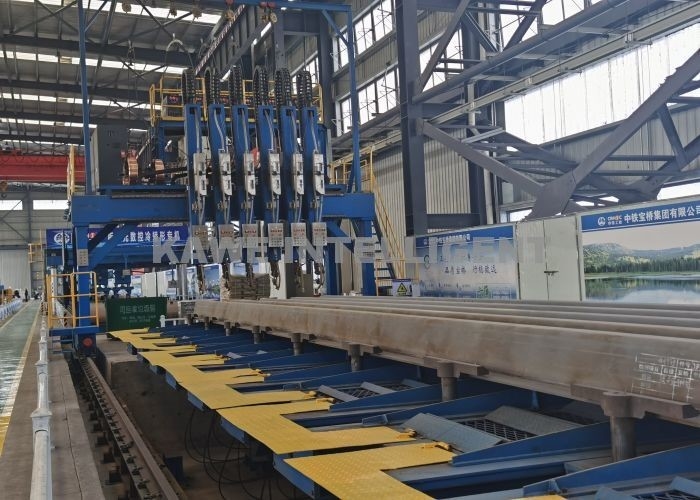

Bridge U rib multi-electrode welding machine
Six head double wire U rib gantry welding machine is a welding U rib unit equipment developed by ourselves according to the welding process of fillet weld between U rib unit and bottom plate of steel bridge U rib unit. This machine is mainly used as a special equipment for gas shielded fillet welding between U rib and bottom plate.
main technical parameters
| Rail span | 8000mm |
| Rail length | according to customer's requiremnt |
| Bottom plate width | 4.5m |
| Max.length of bottom plate | 16m |
| Thickness of bottom plate | 12-40 mm |
| Thickness of U rib | 12mm |
| The Angle between the U rib and the bottom plate | 1060 |
| Groove Angle | 460,truncated edge 2mm |
| The number of U ribs on each bottom plate | 6pcs |
| U rib distance between centres | 600-800mm |
| Material | Q370 |
FAQ
1. Are you factory or foreign trade company?
We are factory ,do both domestic and froeign market
2. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day. If you need our engineer go to your factory installation and training , that all no problems
3. What's the quality of your products?
For the machine frame all made by ourself, quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
