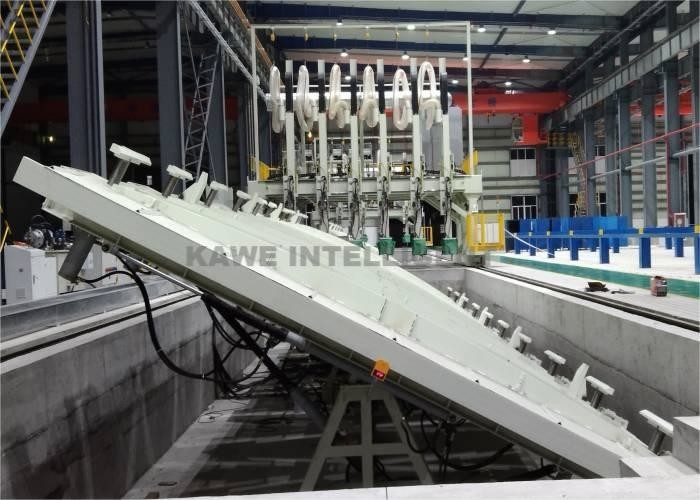

Bridge U Rib Multi Electrode Panel Welding Machine Gas Shield

Bridge U Rib Multi Electrode Panel Welding Machine Gas Shield
Bridge U Rib Multi Electrode Panel Welding Machine Gas Shield

Large Image :  Bridge U Rib Multi Electrode Panel Welding Machine Gas Shield

Product Details:
Place of Origin: China
Brand Name: KAWE
Certification: ISO9001
Model Number: KBUW-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 30,000-USD250,000
Packaging Details: export standard package
Delivery Time: 5-40days
Supply Ability: 1set/40days

Bridge U Rib Multi Electrode Panel Welding Machine Gas Shield

Description
Usage: Bridge U Rib Welding Process: Fillet Weld In Flat Position
After-sales Service Provided: Video Technical Support,Field Installation Type: Gas Shield Welding
Warranty: 1 Year Machine Type: Gantry
Name: Bridge U Rib Multi-electrode Welding Machine Application: Welding Machine
High Light:

Electrode panel welding machine

,

panel welding machine Gas Shield

,

Bridge U Rib welding machine

Bridge U rib multi-electrode welding machine

Six head double wire U rib gantry welding machine is a welding U rib unit equipment developed by ourselves according to the welding process of fillet weld between U rib unit and bottom plate of steel bridge U rib unit. This machine is mainly used as a special equipment for gas shielded fillet welding between U rib and bottom plate.

main technical parameters

Rail span 7000mm
Rail length according to customer's requiremnt
Bottom plate width 4.5m
Max.length of bottom plate 16m
Thickness of bottom plate 12-40 mm
Thickness of U rib 12mm
The Angle between the U rib and the bottom plate 1060
Groove Angle 460,truncated edge 2mm
The number of U ribs on each bottom plate 6pcs
U rib distance between centres 600-800mm
Material Q370



FAQ

1. What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
2. What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas.
(2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
