Product Details:
|
| Usage: | Bridge U Rib Welding | Process: | Fillet Weld In Flat Position |
|---|---|---|---|
| After-sales Service Provided: | Video Technical Support,Field Installation | Type: | Gas Shield Welding |
| Warranty: | 1 Year | Machine Type: | Gantry |
| Name: | Bridge U Rib Multi-electrode Welding Machine | Application: | Welding Machine |
| Highlight: | multi electrode welding machine,U rib electrode welding machine,Bridge welding machine Rail Span 8000mm |
||

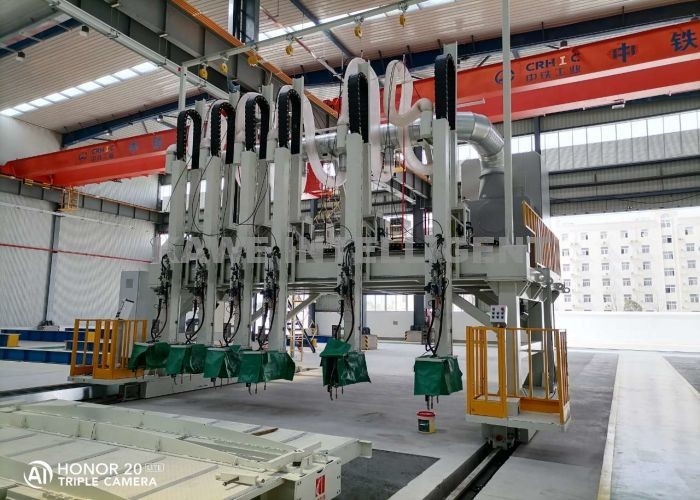

Bridge U rib multi-electrode welding machine
Six head double wire U rib gantry welding machine is a welding U rib unit equipment developed by ourselves according to the welding process of fillet weld between U rib unit and bottom plate of steel bridge U rib unit. This machine is mainly used as a special equipment for gas shielded fillet welding between U rib and bottom plate.
main technical parameters
| Rail span | 8000mm |
| Rail length | according to customer's requiremnt |
| Bottom plate width | 4.5m |
| Max.length of bottom plate | 16m |
| Thickness of bottom plate | 12-40 mm |
| Thickness of U rib | 12mm |
| The Angle between the U rib and the bottom plate | 1060 |
| Groove Angle | 460,truncated edge 2mm |
| The number of U ribs on each bottom plate | 6pcs |
| U rib distance between centres | 600-800mm |
| Material | Q370 |
