Product Details:
|
| Warranty: | 1 Year | Usage: | BOX Beam Welding,used For Making Box Beam,Box-beam Welding |
|---|---|---|---|
| Dimensions: | 300-1500mm,As Clients Requirement | Voltage: | 380V,415V |
| Color: | As Customer | Rated Duty Cycle: | 100%,For Enquiry |
| Application: | Box Beam Production Line | Machine Type: | Cantilever |
| Welding Process: | Submerged Arc Welding | ||
| High Light: | Double Torches submerged arc welding machine,Box Beam submerged arc welding machine,Cantilever Submerged Arc Welding Machine |
||

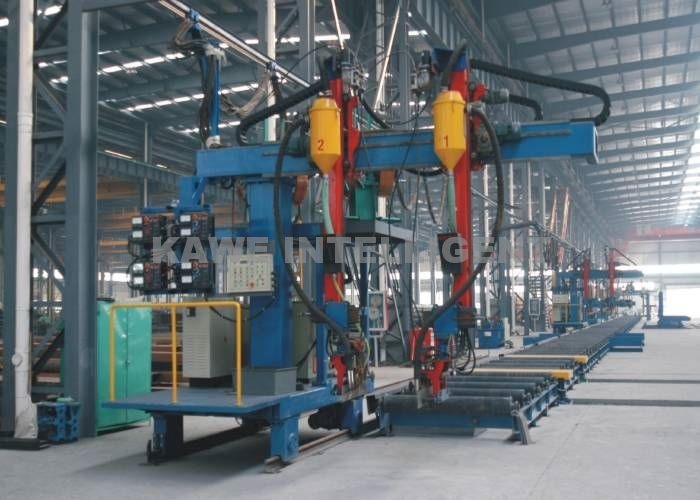

Cantilever double torches BOX BEAM SUBMERGED ARC WELDING MACHINE
Technical process:
This machine adopts double arc double wire welding technology, mechanical welding seam tracking, welding flux automatic laying and recycling, etc. It welds the both sides of the box beam at same time and the welding efficiency is high.
Technical parameters:
|
model item |
XMH-1500 |
| Applicable box beam size(width) | 300-1500mm |
| Applicable box beam size(height) | 300-1500mm |
| Applicable box beam size(length) | 3000-15000mm |
| Main machine moving speed | 3000mm/min |
| Welding speed | 300-600mm/min |
| Welding seam type | Horizontal V type welding |
| Welding wire diameter | 3.2/4.0/5.0mm |
| Machine power | 8.2KW+welding system |
FAQ
1. Are you factory or foreign trade company?
We are factory ,do both domestic and froeign market
2. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day. If you need our engineer go to your factory installation and training , that all no problems
3. What's the quality of your products?
For the machine frame all made by ourself, quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
