Product Details:
|
| Warranty: | 1 Year | Usage: | BOX Beam H Beam Welding |
|---|---|---|---|
| Dimensions: | 300-1500mm,As Clients Requirement | Voltage: | 380V,415V |
| Color: | As Customer | Rated Duty Cycle: | 100%,For Enquiry |
| Application: | Box Beam Production Line | Machine Type: | Gantry |
| Welding Process: | Submerged Arc Welding | Power Supply: | 3PH,50Hz,380V,or Customerized |
| High Light: | Multifunctional submerged welding machine,Gantry submerged welding machine,Box Beam machine 415V |
||

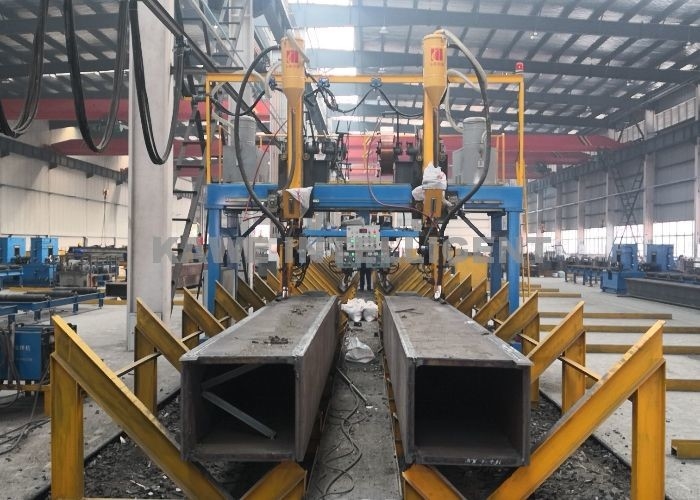

Multifunctional Gantry SUBMERGED ARC WELDING MACHINE for H beam Box beam
Technical process:
This machine has two sets of arc guiding devices. It can welds box beam and H beam with different arc guiding racks,with flexible,multifunctional advantages.
Technical parameters:
|
Model |
KMH-4000B | |
| Applicable box beam size(width) | 300-1500mm | |
| Applicable box beam size(height) | 300-1500mm | |
| Applicable box beam size(length) | 3000-15000mm | |
| Main machine moving speed | 3000mm/min | |
| Welding speed | 300-600mm/min | |
| Welding seam type | Horizontal V type welding | |
| Welding wire diameter | 3.2/4.0/5.0mm | |
| Machine power | 8.2KW+welding system | |
