Product Details:
|
| Warranty: | 1 Year | Usage: | BOX Beam Welding,used For Making Box Beam,Box-beam Welding |
|---|---|---|---|
| Dimensions: | 300-1500mm,As Clients Requirement | Voltage: | 380V,415V |
| Color: | As Customer | Rated Duty Cycle: | 100%,For Enquiry |
| Application: | Box Beam Production Line | Machine Type: | Cantilever |
| Welding Process: | Submerged Arc Welding | ||
| High Light: | Box Beam Submerged Arc Welder,Submerged Arc Welder Cantilever,Box Beam machine 1500mm |
||

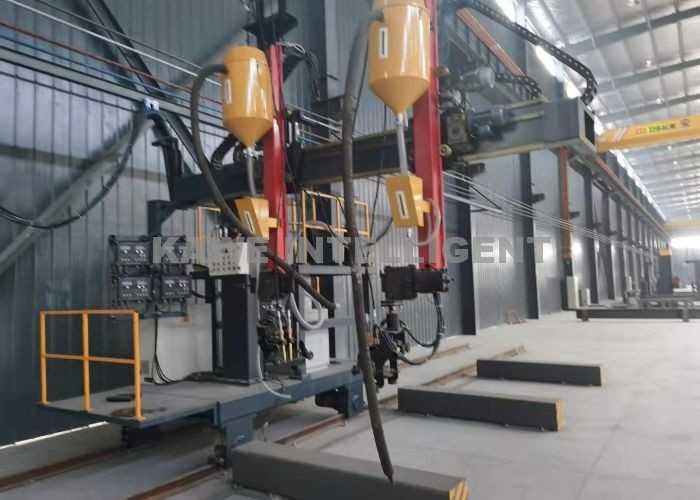

Cantilever double torches BOX BEAM SUBMERGED ARC WELDING MACHINE
Technical process:
This machine adopts double arc double wire welding technology, mechanical welding seam tracking, welding flux automatic laying and recycling, etc. It welds the both sides of the box beam at same time and the welding efficiency is high.
Technical parameters:
|
model item |
XMH-1500 | |
| Applicable box beam size(width) | 300-1500mm | |
| Applicable box beam size(height) | 300-1500mm | |
| Applicable box beam size(length) | 3000-15000mm | |
| Main machine moving speed | 3000mm/min | |
| Welding speed | 300-600mm/min | |
| Welding seam type | Horizontal V type welding | |
| Welding wire diameter | 3.2/4.0/5.0mm | |
| Machine power | 8.2KW+welding system | |
FAQ
1. What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
2. What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas.
(2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
