Product Details:
|
| Warranty: | 1 Year | Usage: | BOX Beam Welding,used For Making Box Beam,Box-beam Welding |
|---|---|---|---|
| Dimensions: | 300-1500mm,As Clients Requirement | Voltage: | 380V,415V |
| Color: | As Customer | Rated Duty Cycle: | 100%,For Enquiry |
| Application: | Box Beam Production Line | Machine Type: | Gantry |
| Welding Process: | Double Arc Double Wire | ||
| High Light: | Box Beam submerged arc welding equipment,submerged arc welding equipment Gantry,Box Beam sub arc machine |
||

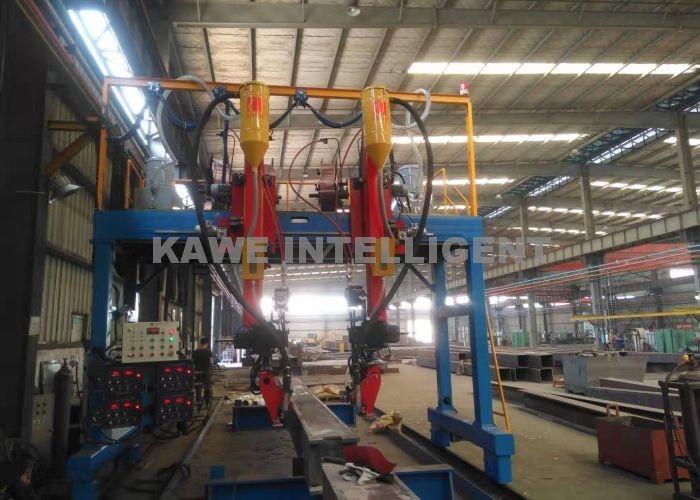

BOX BEAM SUBMERGED ARC WELDING MACHINE
Technical process:
This machine adopts double arc double wire welding technology, mechanical welding seam tracking, welding flux automatic laying and recycling, etc. It welds the both sides of the box beam at same time and the welding efficiency is high.
Technical parameters:
|
model item |
KMH-1200 | KMH-1500 |
| Applicable box beam size(width) | 300-1200mm | 300-1500mm |
| Applicable box beam size(height) | 300-1200mm | 300-1500mm |
| Applicable box beam size(length) | 3000-15000mm | |
| Main machine moving speed | 3000mm/min | |
| Welding speed | 300-600mm/min | |
| Welding seam type | Horizontal V type welding | |
| Welding wire diameter | 3.2/4.0/5.0mm | |
| Machine power | 8.2KW+welding system | |
