Product Details:
|
| Usage: | BOX Beam Assembly | Dimensions: | 300-1500mm |
|---|---|---|---|
| Application: | BOX Column Accurate Positioning | Machine Type: | Assembly Machine For Box Column |
| Drive: | Hydraulic And Motor | Moving Speed: | 8mm/min |
| High Light: | 300mm Box Beam Production Line,1500mm Box Beam Production Line,box beam machine 8mm min |
||

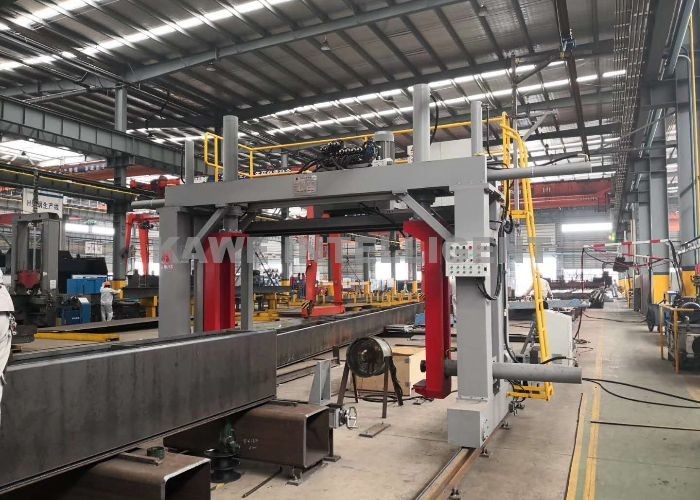

ZUZB-1500 BOX BEAM ASSEMBLING MACHINE
Technical process:
This machine adopts the principle of hydraulic compaction around the box column, eliminates the gap between the inner diaphragm and side plate, and gap between side plate and side plate, and assistant to assemble the box column with manual spot welding.
.Technical parameters:
|
model item |
KZUZB-1200 | KZUZB-1500 |
| Applicable box beam size(width) | 300-1200mm | 300-1500mm |
| Applicable box beam size(height) | 300-1200mm | 300-1500mm |
| Applicable box beam size(length) | 3000-15000mm | |
| Main machine moving speed | 8000mm/min | |
| Machine power | 10KW | |
