380V 415V Box Beam Production Line Sub Arc Welding Machine

380V 415V Box Beam Production Line Sub Arc Welding Machine
380V 415V Box Beam Production Line Sub Arc Welding Machine

Large Image :  380V 415V Box Beam Production Line Sub Arc Welding Machine

Product Details:
Place of Origin: China
Brand Name: KAWE
Certification: ISO9001
Model Number: KMH-1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 20,000-USD40,000
Packaging Details: export standard package
Delivery Time: 5-30days
Supply Ability: 1set/30days

380V 415V Box Beam Production Line Sub Arc Welding Machine

Description
Warranty: 1 Year Usage: BOX Beam Welding,used For Making Box Beam,Box-beam Welding
Dimensions: 300-1500mm,As Clients Requirement Voltage: 380V,415V
Color: As Customer Rated Duty Cycle: 100%,For Enquiry
Application: Box Beam Production Line Machine Type: Welding Production Line,gantry
High Light:

380V Box Beam Production Line

,

415V sub arc welding machine

,

sub arc welding machine 1500mm

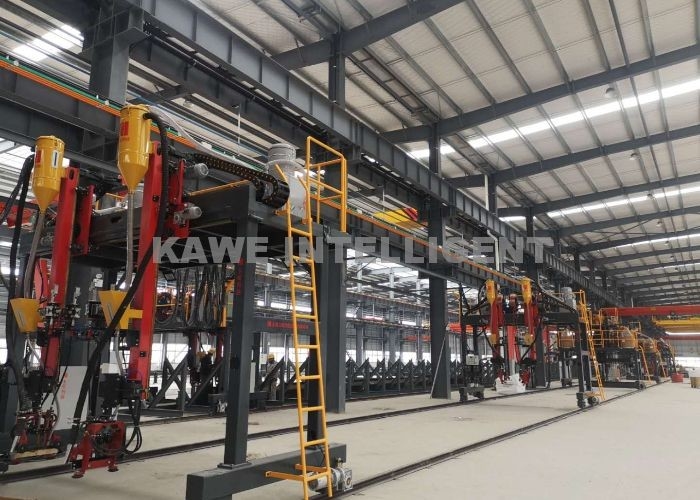

BOX BEAM SUBMERGED ARC WELDING MACHINE



Technical process:

This machine adopts double arc double wire welding technology, mechanical welding seam tracking, welding flux automatic laying and recycling, etc. It welds the both sides of the box beam at same time and the welding efficiency is high.

Technical parameters:



          model

item

KMH-1200 KMH-1500
Applicable box beam size(width) 300-1200mm 300-1500mm
Applicable box beam size(height) 300-1200mm 300-1500mm
Applicable box beam size(length) 3000-15000mm
Main machine moving speed 3000mm/min
Welding speed 300-600mm/min
Welding seam type Horizontal V type welding
Welding wire diameter 3.2/4.0/5.0mm
Machine power 8.2KW+welding system
