Product Details:
|
| After-sales Service Provided: | Commissioning And Training | Usage: | BOX Beam Welding,used For Making Box Beam |
|---|---|---|---|
| Dimensions: | 300-1500mm | Rated Duty Cycle: | 100% |
| Application: | BOX BEAM H BEAM,Box Beam Production Line | Machine Type: | Welding Production Line,gantry |
| High Light: | Gas Shield Padding Box Beam Machine,Box Beam Machine 1500mm,Box Beam Machine 3000mm/min |
||

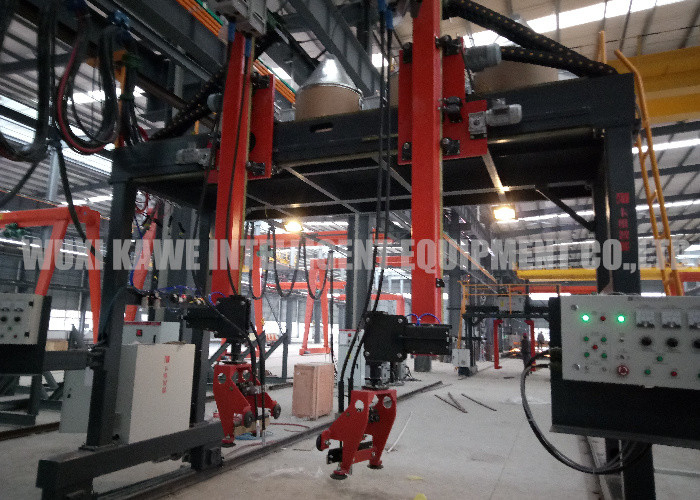

BOX BEAM GAS SHIELD PADDING MACHINE
Technical process:
The gas shielded welding technology, automatic welding seam tracking and other technologies are adopted, welding the both sides welding seam at same time and the welding efficiency is high.
Technical parameters:
|
model item |
KMQ-1200 | KMQ-1500 |
| Applicable box beam size(width) | 300-1200mm | 300-1500mm |
| Applicable box beam size(height) | 300-1200mm | 300-1500mm |
| Applicable box beam size(length) | 3000-15000mm | |
| Main machine moving speed | 3000mm/min | |
| Welding speed | 300-600mm/min | |
| Welding seam type | Horizontal V type welding | |
| Welding wire diameter | 1.6/2.0mm | |
| Machine power | 4.5KW+ welding system | |
