Product Details:
|
| Usage: | BOX Beam Welding | Dimensions: | 300-1500mm |
|---|---|---|---|
| Application: | BOX BEAM H BEAM,ensure The Accurate Positioming | Machine Type: | Welding Production Line |
| Highlight: | BOX Beam Assembly Machine,Beam Assembly Machine 300mm,box beam machine 1500mm |
||

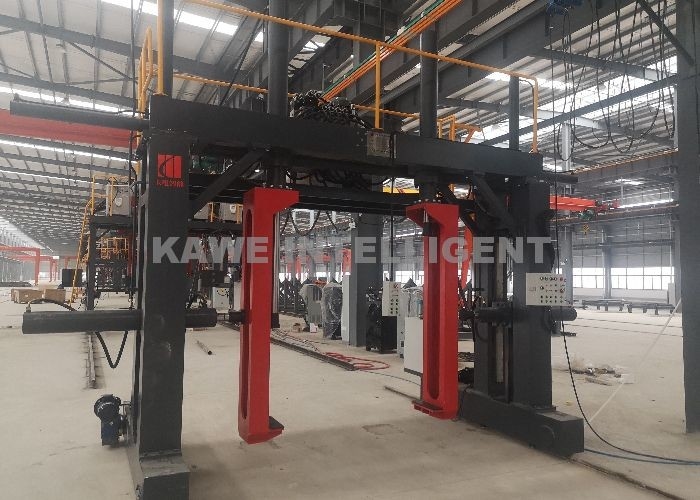

BOX BEAM ASSEMBLING MACHINE
Technical process:
This machine adopts the principle of hydraulic compaction around the box column, eliminates the gap between the inner diaphragm and side plate, and gap between side plate and side plate, and assistant to assemble the box column with manual spot welding.
.Technical parameters:
|
model item |
KZUZB-1200 | KZUZB-1500 |
| Applicable box beam size(width) | 300-1200mm | 300-1500mm |
| Applicable box beam size(height) | 300-1200mm | 300-1500mm |
| Applicable box beam size(length) | 3000-15000mm | |
| Main machine moving speed | 8000mm/min | |
| Machine power | 10KW | |
