Product Details:
|
| Cutting Speed: | 0-8000mm/min | Product Name: | Cnc Cutting Machine |
|---|---|---|---|
| Control System: | Hypertherm | Dimension(l*w*h): | Customized |
| Thickness Of Plate (mm): | 2--80 | Cutting Speed(mm/min): | 0-5000 |
| High Light: | 2500mm CNC Plasma Cutting Machine,sheet metal plasma cutting table 3000mm,sheet metal plasma cutting table 20000mm |
||

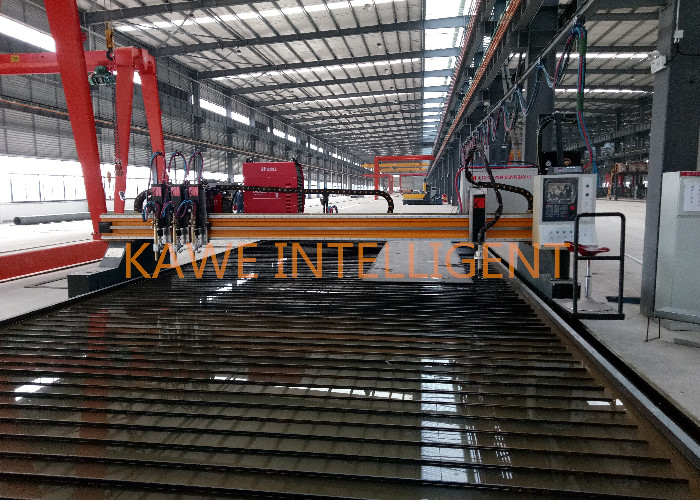

Customizable CNC PLASMA CUTTING MACHINE
This machine adopts plasma as the cutting source, suitable for high efficiency and high precision cutting of the plate. The machine adopts digital control and servo drive and high precision transmission system to realize the cutting of parts with any shape. It can meet different cutting process requirement with numerical control gas and strip gas cutting. Gantry structure and bilateral drive, achieve higher cutting precision. The automatic nesting software can not only improve the efficiency of programming, but also greatly improve the utilization of materials.
|
Category Parameter |
CNC plasma | CNC plasma+strip cutting |
| Rail span W(mm) | 3000--20000 | |
| Effective cutting width (mm) | W-700 |
strip:W-700 CNC:W-800 |
| Effective cutting length (mm) | Length L-2500 | |
| Minimum cutting width(mm) | CNC torch:200 |
strip:80 CNC:250 |
| Thickness of plate (mm) | 2--80 | |
| Cutting speed(mm/min) | 0-5000 | |
| Maximum walking speed(mm/min) | 12000 | |
| Numerical control system | KAWE/Start/Hypertherm | |
| Servo system | panasonic/Mitsubishi | |
| Plasma system | Hypertherm / victor(common/high precision/true hole) | |
| Nesting software(optional) | Australian Fastcam | |
