Product Details:
|
| Cutting Speed: | 0-8000mm/min | Product Name: | Cnc Cutting Machine |
|---|---|---|---|
| Control System: | Hypertherm | Dimension(l*w*h): | Customized |
| Plasma Power: | Hypertherm | Motors: | Panasonic |
| Gears: | Germany Neugart | Software: | FastCAM |
| Torches No.: | 1+2 | Material: | Steel/Aluminum/stanless Steel |
| High Light: | Gantry CNC Plasma Cutting Machine,CNC Plasma Cutting Machine steel plate,plasma cutting machine table 12000mm/min |
||

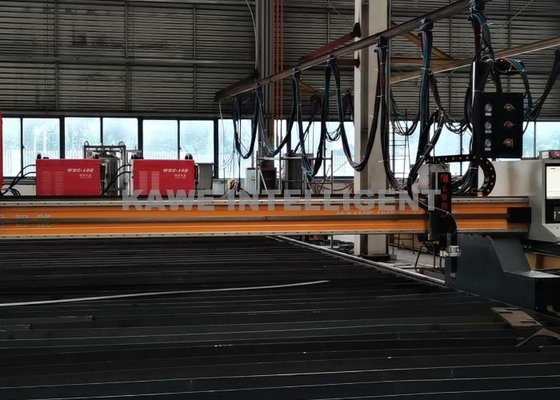

GSII-5000D Gantry CNC PLASMA CUTTING MACHINE for steel plate
This machine adopts plasma as the cutting source, suitable for high efficiency and high precision cutting of the plate. The machine adopts digital control and servo drive and high precision transmission system to realize the cutting of parts with any shape. It can meet different cutting process requirement with numerical control gas and strip gas cutting. Gantry structure and bilateral drive, achieve higher cutting precision. The automatic nesting software can not only improve the efficiency of programming, but also greatly improve the utilization of materials.
|
Category Parameter |
CNC plasma | CNC plasma+strip cutting |
| Rail span W(mm) | 3000--20000 | |
| Effective cutting width (mm) | W-700 |
strip:W-700 CNC:W-800 |
| Effective cutting length (mm) | Length L-2500 | |
| Minimum cutting width(mm) | CNC torch:200 |
strip:80 CNC:250 |
| Thickness of plate (mm) | 2--80 | |
| Cutting speed(mm/min) | 0-5000 | |
| Maximum walking speed(mm/min) | 12000 | |
| Numerical control system | KAWE/Start/Hypertherm | |
| Servo system | panasonic/Mitsubishi | |
| Plasma system | Hypertherm / victor(common/high precision/true hole) | |
| Nesting software(optional) | Australian Fastcam | |
FAQ
1. What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
2. What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas.
(2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
