| Cutting Speed: | 100-3000mm/min | Product Name: | Cnc Pipe Cutting Machine |
|---|---|---|---|
| Control System: | Hypertherm | Dimension(l*w*h): | Customized |
| Plasma Power: | Hypertherm | Motors: | Panasonic |
| Gears: | Germany Neugart | Software: | PA |
| Axis No.: | 5/6 | Material: | Steel/Aluminum/stanless Steel |
| High Light: | Steel Pipe 5 Axis CNC Plasma Cutter,5 Axis CNC Plasma Cutter 100mm min,3000mm min metal cnc table |
||

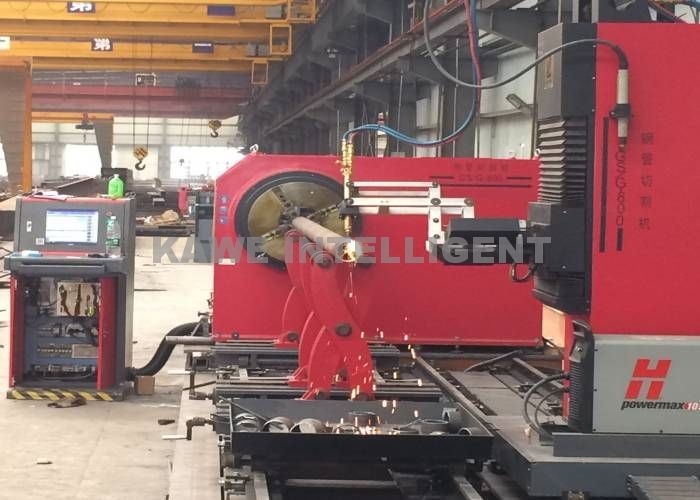

5 axis CNC PLASMA CUTTING MACHINE for steel pipe
Summarize
KPGS-600/5 5 axis CNC steel pipe intersecting line cutting machine is CNC controlled steel pipe intersecting line cutting machine, through the keyboard input data to the computer,after correct calculation, including opening groove intersecting line cutting. Self-centering chuck can clamp φ 60mm- φ 600mm pipe diameter, the longest length of the pipe can be processed is 12m. In addition, it also has many functions, such as pre-cutting, pipe torsion Angle setting, automatic speed regulation, etc., to simplify the cutting operation.
Branch pipe and main pipe machining can change the groove Angle cutting. Cutting torch on the track is the stroke of 12m, can be cut at any position on the track processing.
There are 4 groups of lifting and holding rollers on the pipe bench, the position of the workpiece can be adjusted more accurately, and the jump of the pipe can be reduced when the pipe rotates. The operation of moving, setting and moving the pipe is very simple.
The CNC pipe intersecting line cutting machine can not only cut by flame, but also by plasma cutting, which greatly improves the production efficiency.
Equipment application introduction:
It is mainly used for thermal cutting of pipe end intersecting line and pipe system pipe intersecting line hole (including groove).
Applicable workpiece material: low-carbon steel, stainless steel tube(need to optional plasma cutting function)
Main technical parameters
| Processing pipe diameter | Φ60-600mm |
| Pipe thickness | 5-20mm(plasma cutting depends on the plasma power supply situation) |
| Pipe length( MAX) | 12000mm |
| Pipe weight( MAX) | 5000kg |
| Four-claw self-centering chuck | 1 set |
| Inner diameter of chuck | 200mm |
| Pipe bracket | 4 groups |
| Servo motor | 5 sets |
| Computer control system | F6600 |
| Intersecting line cutting software | 1 group |
| Cutting line speed | 100-3000mm/min |
| Longitudinal movement speed | 0-6000mm/min |
| Power supply | 3P 380V/50HZ |
| Ground resistance | ≤3 OHms |
|
Swing Angle of cutting torch along the axial plane of pipe (Groove Angle + cross Angle) control range |
35-145°(±55°) |
|
Swing Angle of cutting torch along radial plane of pipe (Groove Angle + cross Angle) Control range |
35-145° (±55°) |
