Product Details:
|
| Cutting Speed: | 100-3000mm/min | Product Name: | Cnc Pipe Cutting Machine |
|---|---|---|---|
| Control System: | Hypertherm | Dimension(l*w*h): | Customized |
| Plasma Power: | Hypertherm | Motors: | Panasonic |
| Gears: | Germany Neugart | Software: | PA |
| Axis No.: | 5/6 | Material: | Steel/Aluminum/stanless Steel |
| High Light: | Multi Function CNC Plasma Cutting Machine,CNC Plasma Cutting Machine Steel Pipe Plate,6 Axis tube profile cutting machine |
||

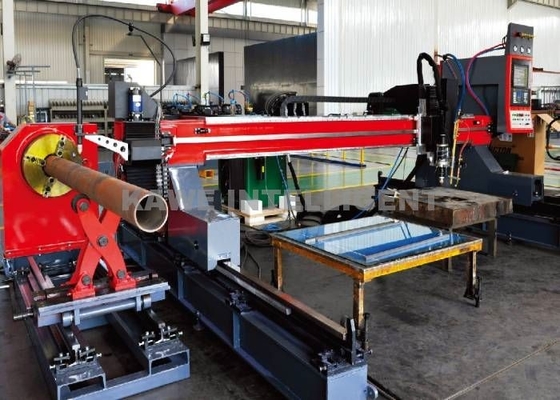

multi function CNC PLASMA CUTTING MACHINE for steel pipe and steel plate
Summarize
Kgsp-4000 CNC tubeplate cutting machine, is a product that our company absorbed advanced technology abroad to improve, research and develop, the equipment has a small occupation of the site, high cutting accuracy, easy to operate and other characteristics, very suitable for customers who require steel plate cutting, and pipe cutting as auxiliary.
Main technical parameters
| Cutting Mode | Dry cutting(plasma/flame) |
| Frame form | classic design, flat plate welding, gantry wide box |
| Gantry rail span |
4000mm |
| Length of gantry beam |
4800mm |
| Gantry track length |
16000mm |
| Gantry guide rail model | 24Kg guide rail |
| Length of bracket track |
14000mm |
| Bracket guide rail model |
24Kg |
| Operating electrical cabinet |
KW2 |
| Operating position | right console |
| control system | F2500x |
| Auxiliary control | Huichuan PLC |
| Electric control part | Siemens/CHNT |
| Plasma cutting torch lifting body | DC motor lifting module 1 group |
| Gantry longitudinal drive system | Panasonic 2 sets |
| Gantry lateral drive system | Panasonic 1 set |
| Pipe spindle drive system | Panasonic 1 set |
| Gantry transverse mechanical transmission | precision rack and pinion 1 set |
| Gantry longitudinal mechanical transmission | precision rack and pinion 1 set |
| Round pipe fixing system | 4 jaw self - centering chuck 1 set |
| Round pipe support mechanism | bracket 2 sests |
| Round pipe feeding device | material receiving trolley 1 set |
| Main frame standard color (fluorocarbon paint spraying process) | Kawe color or color code indicated by customer |
FAQ
1. What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
2. What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas.
(2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
