Product Details:
|
| Usage: | H Beam Welding | Type: | Automatic,SAW |
|---|---|---|---|
| Product Name: | H Beam Welding Machine | Voltage: | As Customer Request |
| Welding Power: | Aotai/Kemppi | Torches: | Single Torch |
| High Light: | Kemppi automatic beam welding machine,300mm/min automatic beam welding machine,Single head sub arc welding equipment |
||

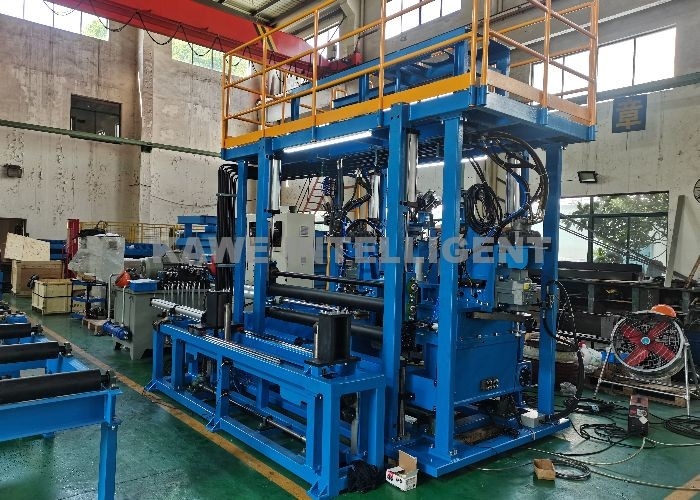

Single head AUTOMATIC WELDING MACHINE for Heavy duty H beam
Technical process:
The machine adopts the ship-type submerged arc welding process, mechanical welding seam automatic tracking, welding flux automatically spread and recycle technology, and two H beam longitudinal seam automatic welding.
Optional:
1. Electronic or laser automatic seam tracking system to realize the welding of special-shaped parts and higher precision.
2. Mounted double wire or multi-wire welding system to achieve higher welding efficiency and better penetration.
3. equipped with the digital welding integrated control system developed by our company to realize welding process database management and digital network communication.
Technical parameters:
| KMH-4000 | KMH-5000 | ||
| Applied H beam size | Width | 200-800mm | 200-1000mm |
| Height | 200-1500mm | 200-1800 | |
| length | 2000-15000mm(can be customized) | ||
| span | 4000/5000/6000 mm | ||
| Rail length | 18000mm(workpiece length +3000mm) | ||
| Welding speed | 300-600mm/min | ||
| welding position | fillet welding in the flat position | ||
| Applied wire size | 2.0/3.2/4.0/5.0 mm | ||
| Applied wire reel specification | 25/350kg | ||
| Flux recycling machine | LT-100(3kw) | ||
| Driving form | Bilateral drive(variable frequency motor) | ||
| Moving control mode | AC variable frequency stepless timing | ||
| main machine power | 10.5kw+ welding system | ||
