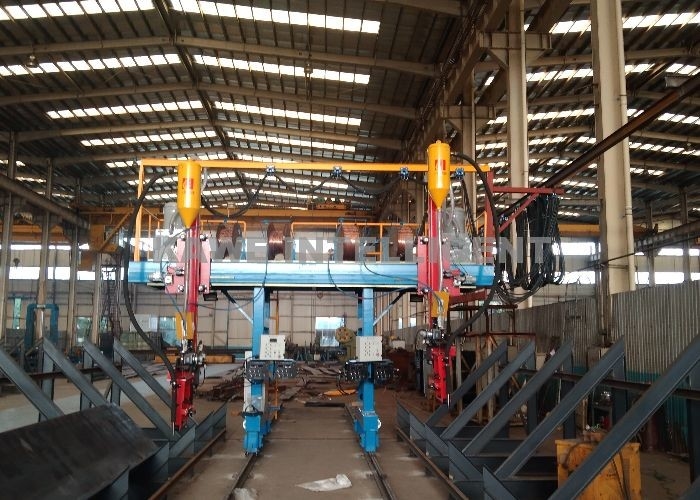

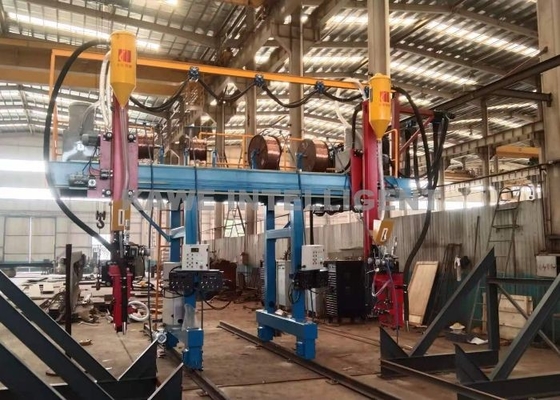

Submerged Arc H Beam Gantry Welding Machine Double Cantilever 200-2500mm

Submerged Arc H Beam Gantry Welding Machine Double Cantilever 200-2500mm
Submerged Arc H Beam Gantry Welding Machine Double Cantilever 200-2500mm Submerged Arc H Beam Gantry Welding Machine Double Cantilever 200-2500mm

Large Image :  Submerged Arc H Beam Gantry Welding Machine Double Cantilever 200-2500mm

Product Details:
Place of Origin: China
Brand Name: KAWE
Certification: ISO9001
Model Number: KTMH-1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 20,000-30,000
Packaging Details: export standard package
Delivery Time: 5-30days
Supply Ability: 10sets/day

Submerged Arc H Beam Gantry Welding Machine Double Cantilever 200-2500mm

Description
Form: Double Cantilever Welding Process: Fillet Welding In The Flat Position
Size: Big Workpiece Welding Power: Submerged Arc Welding
Rail Span: 1600mm Welding Speed: 300-600mm/min
Idle Speed: 3000mm/min Applicable Wire Size: 3.2-5mm
High Light:

H Beam Gantry Welding Machine Double Cantilever

,

submerged arc welding machine 200mm

,

submerged arc welding machine 2500mm

Double Cantilever Submerged Arc Welding Machine



This model adopts ac frequency conversion motor and frequency converter control drive on both sides, which can realize a wide range of speed regulation and break through the contradiction between high speed of air stroke and low speed at work. A group of longitudinal moving devices are provided on the left and right sides of the beam to drive the welding head;



With mechanical gear, rack drive to adjust the head position up and down around the position; Arc guide device composed of double spring mechanism and guide wheel, welding position is accurate, so the weld quality is high. The left and right fine tuning is manually adjusted on the guide arc frame, and the small range automatic tracking of the guide arc device is realized by using the spring resilience.



All control cables, welding cables and air pipes are sent randomly through the pulley to ensure effective travel. Flux recovery system can hold up to 50Kg flux independently; The welding wire tray is equipped with a 200Kg welding wire tray frame, and the user can customize the welding wire tray below 200Kg.



Main technical parameters of Double cantilever submerged arc welding machine

Name Specification



Applicable H beam size

Width 200-1000mm
Height 200-2500mm
Length 2000-15000mm
Rail Span 1600mm
Rail Length 18000mm(according to the customer's requests)
Welding Speed 300-600mm/min
Idle speed 3000mm/min
Welding position fillet welding in the flat position
Applicable wire size 3.2-5mm
Applicable wire reel specifications 25-350kg
Flux recovery machine LT-100(3kw)
Driving form Bilateral drive (variable frequency motor)
Moving control mode Ac frequency conversion stepless speed regulation
power supply AC 380V 50HZ 3ph
Machine power 10.5kw



Submerged Arc H Beam Gantry Welding Machine Double Cantilever 200-2500mm 0



FAQ

1. Are you factory or foreign trade company?

We are factory ,do both domestic and froeign market
2. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day. If you need our engineer go to your factory installation and training , that all no problems
3. What's the quality of your products?
For the machine frame all made by ourself, quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
