Product Details:
|
| Usage: | H Beam Welding | Type: | Automatic,SAW |
|---|---|---|---|
| Certification: | ISO9001 | Product Name: | H Beam Welding Line |
| Name: | H Beam Welding Production Line | Voltage: | As Customer Request |
| Welding Speed: | 0.1-1m/min | Welding Power: | Lincoln DC-1000/MZ-1000 |
| High Light: | Automatic H Beam Gantry Welding Machine,H Beam Gantry Welding Machine Submerged Arc,Submerged Arc beam welding machine |
||

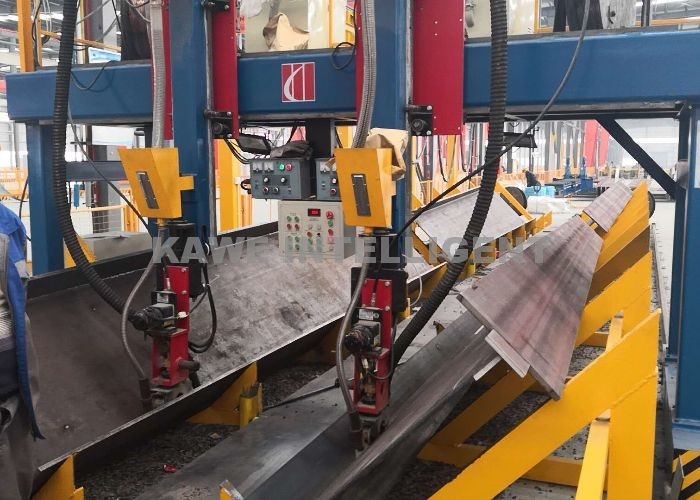

H BEAM AUTOMATIC SUBMERGED ARC WELDING MACHINE
Technical process:
The machine adopts the ship-type submerged arc welding process, mechanical welding seam automatic tracking, welding flux automatically spread and recycle technology, and two H beam longitudinal seam automatic welding.
Optional:
1. Electronic or laser automatic seam tracking system to realize the welding of special-shaped parts and higher precision.
2. Mounted double wire or multi-wire welding system to achieve higher welding efficiency and better penetration.
3. equipped with the digital welding integrated control system developed by our company to realize welding process database management and digital network communication.
Technical parameters:
| KMH-4000 | KMH-5000 | ||
| Applied H beam size | Width | 200-800mm | 200-1000mm |
| Height | 200-1500mm | 200-1800 | |
| length | 2000-15000mm(can be customized) | ||
| span | 4000/5000/6000 mm | ||
| Rail length | 18000mm(workpiece length +3000mm) | ||
| Welding speed | 300-600mm/min | ||
| welding position | fillet welding in the flat position | ||
| Applied wire size | 2.0/3.2/4.0/5.0 mm | ||
| Applied wire reel specification | 25/350kg | ||
| Flux recycling machine | LT-100(3kw) | ||
| Driving form | Bilateral drive(variable frequency motor) | ||
| Moving control mode | AC variable frequency stepless timing | ||
| main machine power | 10.5kw+ welding system | ||
FAQ
1. Are you factory or foreign trade company?
We are factory ,do both domestic and froeign market
2. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day. If you need our engineer go to your factory installation and training , that all no problems
3. What's the quality of your products?
For the machine frame all made by ourself, quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
