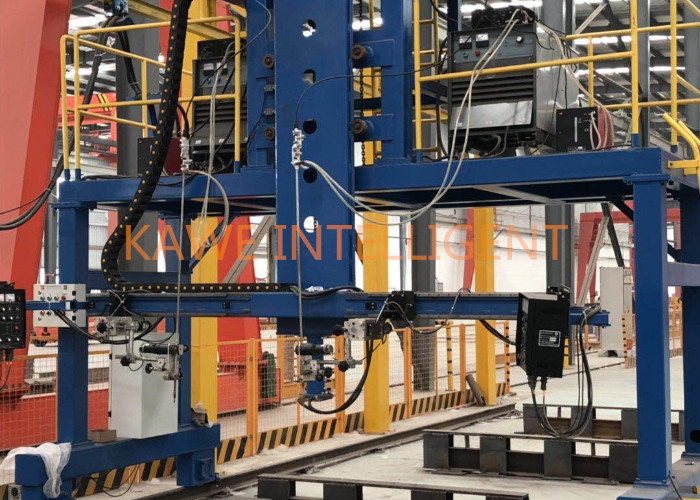

1m/Min H Beam Welding Machine Manufacturers SAW Submerged Arc Welding Equipment

1m/Min H Beam Welding Machine Manufacturers SAW Submerged Arc Welding Equipment
1m/Min H Beam Welding Machine Manufacturers SAW Submerged Arc Welding Equipment

Large Image :  1m/Min H Beam Welding Machine Manufacturers SAW Submerged Arc Welding Equipment

Product Details:
Place of Origin: China
Brand Name: KAWE
Certification: ISO9001
Model Number: KMH-4000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 20,000-30,000
Packaging Details: export standard package
Delivery Time: 5-30days
Supply Ability: 10sets/day

1m/Min H Beam Welding Machine Manufacturers SAW Submerged Arc Welding Equipment

Description
Usage: H Beam Welding Type: Automatic,SAW
Certification: ISO9001 Product Name: H Beam Welding Line
Name: H Beam Welding Production Line Voltage: As Customer Request
Welding Speed: 0.1-1m/min Welding Power: Lincoln DC-1000/MZ-1000
High Light:

Lincoln DC-1000 h beam welding machine manufacturers

,

1m/min h beam welding machine manufacturers

,

SAW submerged arc welding equipment

H BEAM AUTOMATIC SUBMERGED ARC WELDING MACHINE



Technical process:

The machine adopts the ship-type submerged arc welding process, mechanical welding seam automatic tracking, welding flux automatically spread and recycle technology, and two H beam longitudinal seam automatic welding.



Optional:

1. Electronic or laser automatic seam tracking system to realize the welding of special-shaped parts and higher precision.

2. Mounted double wire or multi-wire welding system to achieve higher welding efficiency and better penetration.

3. equipped with the digital welding integrated control system developed by our company to realize welding process database management and digital network communication.



Technical parameters:

  KMH-4000 KMH-5000
Applied H beam size Width 200-800mm 200-1000mm
Height 200-1500mm 200-1800
length 2000-15000mm(can be customized)
span 4000/5000/6000 mm
Rail length 18000mm(workpiece length +3000mm)
Welding speed 300-600mm/min
welding position fillet welding in the flat position
Applied wire size 2.0/3.2/4.0/5.0 mm
Applied wire reel specification 25/350kg
Flux recycling machine LT-100(3kw)
Driving form Bilateral drive(variable frequency motor)
Moving control mode AC variable frequency stepless timing
main machine power 10.5kw+ welding system



1m/Min H Beam Welding Machine Manufacturers SAW Submerged Arc Welding Equipment 0



FAQ

1. Are you factory or foreign trade company?

We are factory ,do both domestic and froeign market
2. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day. If you need our engineer go to your factory installation and training , that all no problems
3. What's the quality of your products?
For the machine frame all made by ourself, quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
