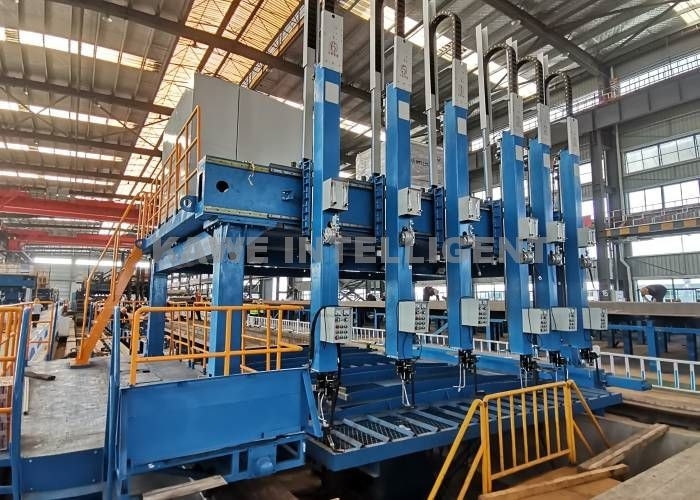

2500mm H Beam Gantry Welding Machine Submerged Arc Gantry Welder

Double Cantilever Submerged Arc Welding Machine

This model adopts ac frequency conversion motor and frequency converter control drive on both sides, which can realize a wide range of speed regulation and break through the contradiction between high speed of air stroke and low speed at work. A group of longitudinal moving devices are provided on the left and right sides of the beam to drive the welding head;

With mechanical gear, rack drive to adjust the head position up and down around the position; Arc guide device composed of double spring mechanism and guide wheel, welding position is accurate, so the weld quality is high. The left and right fine tuning is manually adjusted on the guide arc frame, and the small range automatic tracking of the guide arc device is realized by using the spring resilience.

All control cables, welding cables and air pipes are sent randomly through the pulley to ensure effective travel. Flux recovery system can hold up to 50Kg flux independently; The welding wire tray is equipped with a 200Kg welding wire tray frame, and the user can customize the welding wire tray below 200Kg.

Main technical parameters of Double cantilever submerged arc welding machine

FAQ

1. Are you factory or foreign trade company?

We are factory ,do both domestic and froeign market
2. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day. If you need our engineer go to your factory installation and training , that all no problems
3. What's the quality of your products?
For the machine frame all made by ourself, quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
