Product Details:
|
| Condition: | New | Transmission: | Hydraulic |
|---|---|---|---|
| Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,commissioning And Training |
| Power(w): | 9kw | Precision: | High Precision |
| Name: | Hydraulic Chamfering Machine | Plate Thickness: | 5mm |
| High Light: | Hydraulic plate chamfering machine,plate chamfering machine 150mm,edge chamfering machine 500mm |
||

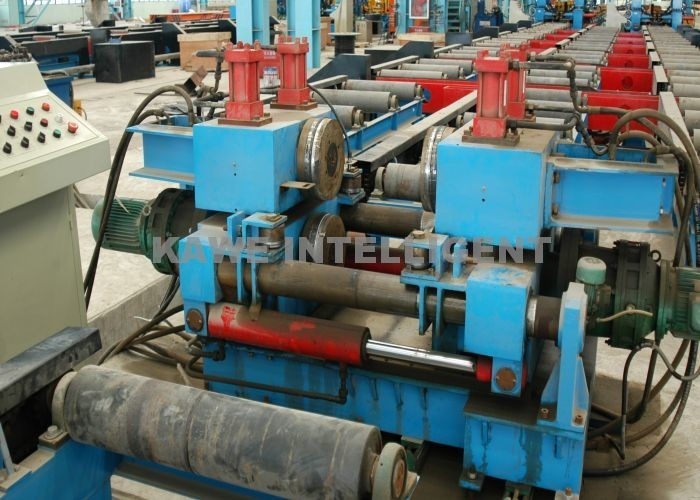

Hydraulic chamfering machine
Technical process:
The machine adopts the principle of the rolling, fast and efficient rolling material edge, make it become rounded angle, can replace the traditional manual deburring, chamfering process, rounded process, uniform rounded shape, appearance beautiful, the production efficiency is high, the worker labor intensity is low, through the plate edge rolling, greatly reduces the plate edge stress concentration, the machine is in sheet metal welding, Anticorrosion and prevent plate paint from falling off, its role is especially outstanding, the machine has the same high efficiency for mass production and small batch, is the ideal supporting equipment for shipbuilding, steel structure and other industries.
Technical parameters:
| Item | Parameters |
| plate width | 150-500mm |
| plate thickness | 10-50mm |
| workpiece length | 4000-12000mm |
| material | Q235A/Q345B |
| Hydraulic rounded corners | R2-R3 |
| Hydraulic speed | 10m/mim |
| Auxiliary conveying speed | 10m/min |
| rated pressure of hydraulic system | 10Mpa |
| machine power | 9KW |
| overall dimensions | 26500×1830×1345 |
