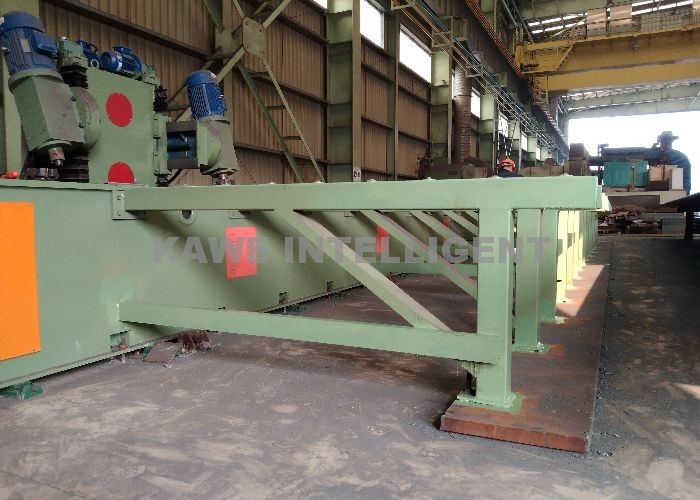

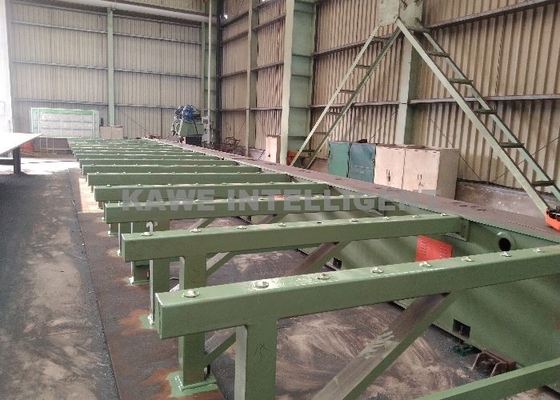

6-50mm Edge Milling Machine 5.5Kw ISO9001

6-50mm Edge Milling Machine 5.5Kw ISO9001
6-50mm Edge Milling Machine 5.5Kw ISO9001 6-50mm Edge Milling Machine 5.5Kw ISO9001

Large Image :  6-50mm Edge Milling Machine 5.5Kw ISO9001

Product Details:
Place of Origin: China
Brand Name: KAWE
Certification: ISO9001
Model Number: KXBJ-9
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 20,000-40,000
Packaging Details: export standard package
Delivery Time: 5-30days
Supply Ability: 1set/30days

6-50mm Edge Milling Machine 5.5Kw ISO9001

Product Name: Edge Milling Machine Plate Thickness(mm): 6~50
Max. Milling Depth At One Time(mm): 4 Milling Angle Of Cutter Head: 0~45°(standard)
Milling Feeding Speed (m/min): 0.25~0.6 Fast Forward Speed (m/min): 2
Milling Power (KW): 5.5
High Light:

50mm Edge Milling Machine


Edge Milling Machine 5.5Kw


Edge Milling Machine KAWE

Edge Milling Machine

The series edge milling machine, milling process, instead of cutting processing, in front of the sheet is suitable for welding thick plate straight edge, hypotenuse, v-shaped groove milling processing, can effectively improve production efficiency and product quality, at the same time reduces the cost, is the pressure containers, ships, electric power, petroleum, chemical, and mechanical industry such as the preferred products.


The machine is mainly composed of bed assembly, pressing beam assembly, telescopic mechanism, milling head, milling head lifting mechanism, hydraulic and electronic control system. Hydraulic plate supporting mechanism is added on the bed body, which is convenient for plate parts to send and return materials. Upper beam assembly adopts full hydraulic pressure, safe and reliable operation of mobile feed mechanism adopts frequency conversion stepless speed regulation, can easily realize the milling of feed speed of adjustment, adjustable cutter head 0 ~ 45 °, electric lifting height of milling cutter, can be in their, and through heat treatment, the bed structure more reasonable, the milling head is more stable and reliable operation.




XBJ-6 XBJ-9 XBJ-12 XBJ-15
Plate thickness(mm) 6~50
Max. milling depth at one time(mm) 4
Milling angle of cutter head 0~45°(standard)
Rotating speed of milling head(rpm) 80~400(8 level exchange gear)
Milling feeding speed (m/min) 0.25~0.6
Fast forward speed (m/min) 2
Milling power (KW) 5.5
Effective milling length (m) max. 6 9 12 15
Effective milling length (m) min. 1.8 1.8 1.8 1.8
Exterior size(length×width×height) mm 8700×2000×2200 11700×2000×2400 14700×2000×2400 17700×2100×2600
6-50mm Edge Milling Machine 5.5Kw ISO9001 0


1. What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
2. What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas.
(2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
