Product Details:
|
| Certification: | ISO | Cnc Or Not: | CNC |
|---|---|---|---|
| Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,commissioning And Training |
| Power(w): | 5.5kw | Precision: | High Precision |
| Product Name: | CNC Milling Machine | Model: | KDX-1520 |
| High Light: | 5.5kw End Face Milling Machine,End Face Milling Machine 1600mm,end milling and face milling CNC |
||

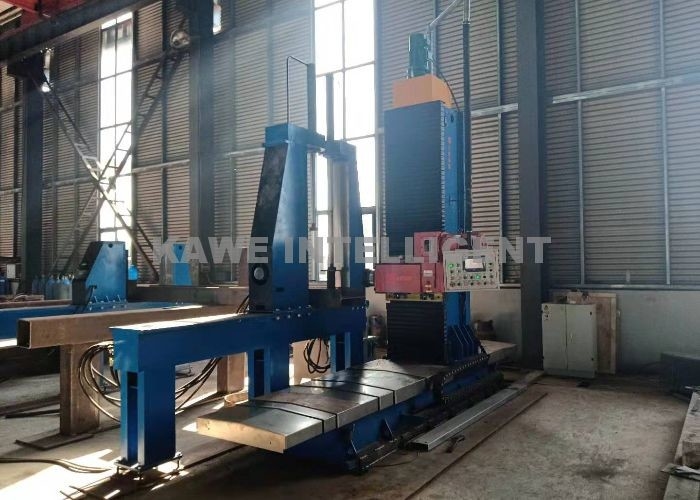

PLC control END FACE MILLING MACHINE
Technical process:
The box beam is clamped by the hydraulic support frame, and the milling power head is controlled by PLC to automatically do the plane milling of the box column end.
Technical parameters:
|
Data model Item |
KDX0816 | KDX1520 |
| workpiece height mm | 800 | 1500 |
| workpiece width mm | 1600 | 2000 |
| Maximum milling depth mm | 5 | |
| Horizontal feed speed mm/min | 200～650 | |
| Vertical feed speed mm/min | 200～650 | |
| Milling cutter diameter mm | ￠200(12 tooth) | |
| Horizontal fast forward speed mm/min | 1500～2000 | |
| Vertical fast forward speed mm/min | 1500～2000 | |
| Main milling power KW | 5．5 | |
| Spindle speed rpm | 80～400(8 grade change gear) | |
| Equipment weight t | 9 | 10.5 |
| Main frame size mm | 4500*1200*3200 | 4900*1200*3700 |
FAQ
1. Are you factory or foreign trade company?
We are factory ,do both domestic and froeign market
2. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day. If you need our engineer go to your factory installation and training , that all no problems
3. What's the quality of your products?
For the machine frame all made by ourself, quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
