Product Details:
|
| Drilling Diameter: | 50mm | Cnc Or Not: | CNC |
|---|---|---|---|
| Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,commissioning And Training |
| Power(w): | 5.5kw | Precision: | High Precision |
| Product Name: | CNC Drilling Machine | Drilling Depth: | 80mm |
| High Light: | CNC steel plate drilling machine 2000mm,CNC steel plate drilling machine 1500mm,CNC drilling machine High Productivity |
||

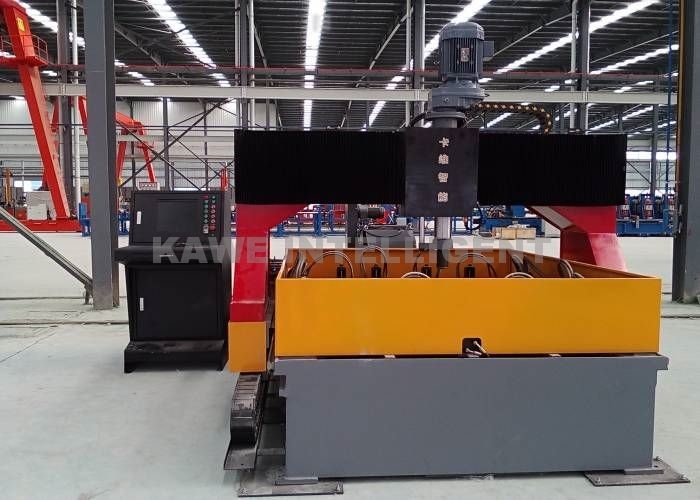

CNC Drilling Machine for steel plate
Technical process:
KZK5550 CNC plane drilling machine is a special machine for connecting plate processing. This equipment is multi-station processing form, can single, multi-piece processing, also suitable for multi-piece overlapping processing, effectively improve the work efficiency. The axial feed of the main shaft of the equipment is driven by servo motor, synchronous belt and pulley deceleration, ball screw transmission and linear guide support to achieve the feed speed and stroke can be digitally controlled; The equipment combines numerical control system, digital AC servo system and precision machinery to form a high-tech product with high reliability, high precision, easy operation, strong technology applicability and high production efficiency. The operator only needs to input the size of the workpiece, input can be repeatedly called, without the preparation of complex processing procedures, is an ideal automatic, efficient metal drilling machine.
Technical parameters:
| Item | KZK5550 |
| Maximum thickness of plate (overlapped calculation) | 80mm |
| Maximum size of one piece (width X length) | 2000×1500mm |
| Minimum size of one piece (width X length) | 200X200mm |
| Spindle collet Mohs | №4 |
| Max.diameter | 50mm |
| Motor power of main spindle | 5.5Kw |
| Spindle speed range | 120～560rpm |
| Spindle up and down stroke | 200mm |
| Thickness of workpiece | 15-80mm |
| Table hydraulic jig | 16sets |
| hydraulic system pressure | 6Mpa |
| air pressure | 0.6Mpa |
| X axis servo motor power | 1kw |
| Y axis servo motor power | 1kw |
| Z axis servo motor power | 1.5kw |
| Hydraulic system hydraulic pump power | 3.7Kw |
| Cutting fluid delivery pump | 0.25Kw |
