Product Details:
|
| Certification: | ISO | Cnc Or Not: | CNC |
|---|---|---|---|
| Warranty: | 12 Months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,commissioning And Training |
| Power(w): | 5.5kw | Precision: | High Precision |
| Product Name: | CNC Milling Machine | Model: | DX-1520 |
| Speed Of Mainshaft: | 80～400RPM | Machine Weight: | 10T |
| High Light: | Dx-1520 End Face Milling Machine,End Face Milling Machine 800mm,end milling and face milling 10T |
||

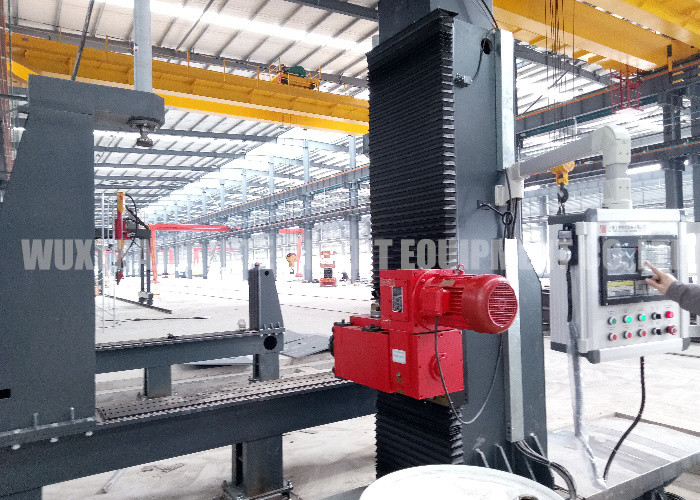

DX-1520 END FACE MILLING MACHINE
Technical process:
The box beam is clamped by the hydraulic support frame, and the milling power head is controlled by PLC to automatically do the plane milling of the box column end.
Technical parameters:
|
Data model Item |
KDX0816 | KDX1520 |
| workpiece height mm | 800 | 1500 |
| workpiece width mm | 1600 | 2000 |
| Maximum milling depth mm | 5 | |
| Horizontal feed speed mm/min | 200～650 | |
| Vertical feed speed mm/min | 200～650 | |
| Milling cutter diameter mm | ￠200(12 tooth) | |
| Horizontal fast forward speed mm/min | 1500～2000 | |
| Vertical fast forward speed mm/min | 1500～2000 | |
| Main milling power KW | 5．5 | |
| Spindle speed rpm | 80～400(8 grade change gear) | |
| Equipment weight t | 9 | 10.5 |
| Main frame size mm | 4500*1200*3200 | 4900*1200*3700 |
