Steel Plate Hydraulic Chamfering Machine 9kw 5mm High Precision

Steel Plate Hydraulic Chamfering Machine 9kw 5mm High Precision
Steel Plate Hydraulic Chamfering Machine 9kw 5mm High Precision

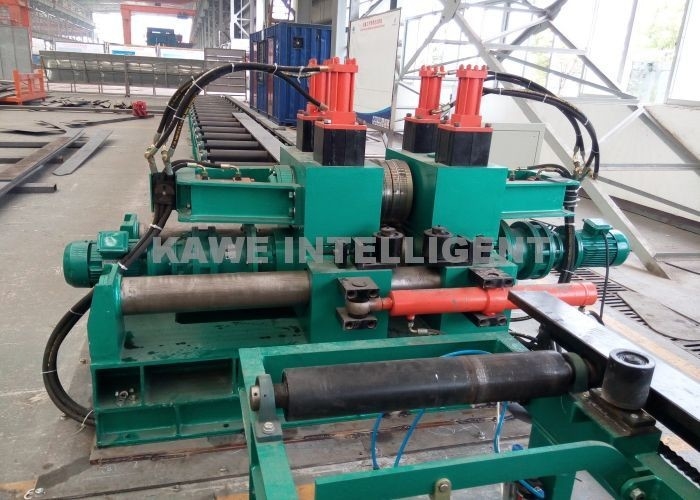

Large Image :  Steel Plate Hydraulic Chamfering Machine 9kw 5mm High Precision

Product Details:
Place of Origin: China
Brand Name: KAWE
Certification: ISO9001
Model Number: KDL-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD30,000-50,000
Packaging Details: export standard package
Delivery Time: 5-30days
Supply Ability: 1set/30days

Steel Plate Hydraulic Chamfering Machine 9kw 5mm High Precision

Description
Condition: New Transmission: Hydraulic
Warranty: 12 Months After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,commissioning And Training
Power(w): 9kw Precision: High Precision
Name: Hydraulic Chamfering Machine Plate Thickness: 5mm
High Light:

steel plate hydraulic chamfering machine

,

hydraulic chamfering machine 9kw

,

hydraulic chamfering machine 5mm

Hydraulic chamfering machine



Technical process:

The machine adopts the principle of the rolling, fast and efficient rolling material edge, make it become rounded angle, can replace the traditional manual deburring, chamfering process, rounded process, uniform rounded shape, appearance beautiful, the production efficiency is high, the worker labor intensity is low, through the plate edge rolling, greatly reduces the plate edge stress concentration, the machine is in sheet metal welding, Anticorrosion and prevent plate paint from falling off, its role is especially outstanding, the machine has the same high efficiency for mass production and small batch, is the ideal supporting equipment for shipbuilding, steel structure and other industries.

Technical parameters:

Item Parameters
plate width 150-500mm
plate thickness 10-50mm
workpiece length 4000-12000mm
material  Q235A/Q345B
Hydraulic rounded corners R2-R3
Hydraulic speed 10m/mim
Auxiliary conveying speed 10m/min
rated pressure of hydraulic system 10Mpa
machine power 9KW
overall dimensions 26500×1830×1345
