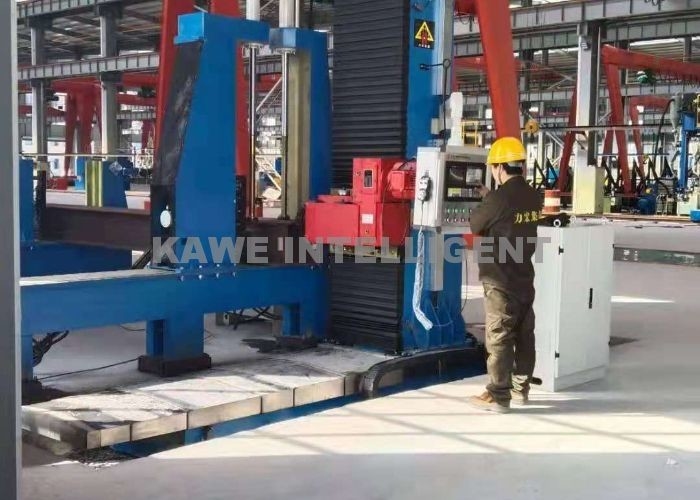

Box Beam End Face Milling Machine Depth 5mm 80-400rpm

Box Beam End Face Milling Machine Depth 5mm 80-400rpm
Box Beam End Face Milling Machine Depth 5mm 80-400rpm

Large Image :  Box Beam End Face Milling Machine Depth 5mm 80-400rpm

Product Details:
Place of Origin: China
Brand Name: KAWE
Certification: ISO9001
Model Number: KDX-1520
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD30,000-50,000
Packaging Details: export standard package
Delivery Time: 5-30days
Supply Ability: 1set/30days

Box Beam End Face Milling Machine Depth 5mm 80-400rpm

Description
Condition: New Cnc Or Not: CNC
Warranty: 12 Months After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,commissioning And Training
Power(w): 5.5kw Precision: High Precision
Product Name: CNC Milling Machine Milling Depth: 5mm
High Light:

box beam End Face Milling Machine

,

End Face Milling Machine 5mm

,

Box Beam machine 400rpm

CNC END FACE MILLING MACHINE for box beam



Technical process:

The box beam is clamped by the hydraulic support frame, and the milling power head is controlled by PLC to automatically do the plane milling of the box column end.



Technical parameters:



 Data model

Item

KDX0816 KDX1520
workpiece height mm 800 1500
workpiece width mm 1600 2000
Maximum milling depth mm 5
Horizontal feed speed mm/min 200~650
Vertical feed speed mm/min 200~650
Milling cutter diameter mm ¢200(12 tooth)
Horizontal fast forward speed mm/min 1500~2000
Vertical fast forward speed mm/min 1500~2000
Main milling power KW 5.5
Spindle speed rpm 80~400(8 grade change gear)
Equipment weight t 9 10.5
Main frame size mm 4500*1200*3200 4900*1200*3700
