Product Details:
|
| Usage: | BOX Beam Welding | Dimensions: | 300-1500mm |
|---|---|---|---|
| Application: | BOX BEAM Making,Box Column Welding | Machine Type: | Welding Production Line |
| Process: | Electroslag Welding | Thickness: | 20-80mm |
| Welding Type: | Wire Melt | Welding Power: | Zhengzhong |
| High Light: | Cantilever Box Column automatic submerged arc welding machine,automatic submerged arc welding machine 20mm,sub arc welding equipment 80mm |
||

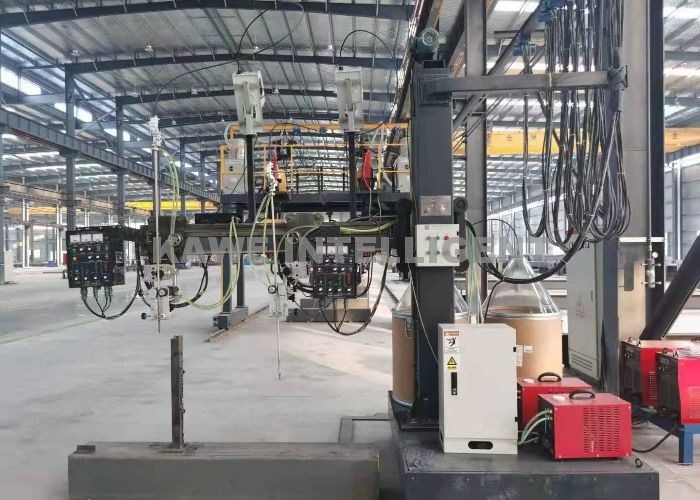

Cantilever BOX column ELECTRO SLAG WELDING MACHINE
Technical process:
The machine mainly consists of two sets of electricslag system on the crossbeam of the walking mechanism to complete the deep hole welding of the inner diaphragm and the web plate of the box beam, and the electroslag welding can be divided into two types: nozzle fusing type and wire fusing type.
Technical parameters:
|
model item |
KDZ-1200 | KDZ-1500 |
| Applicable box beam size(width) | 300-1200mm | 300-1500mm |
| Applicable box beam size(height) | 300-1200mm | 300-1500mm |
| Applicable box beam size(length) | 3000-15000mm | |
| Main machine moving speed | 3200mm/min | |
| Machine power | 10KW | |
