Hydraulic Sheet Metal Straightening Machine H Beam Q235

Hydraulic Sheet Metal Straightening Machine H Beam Q235
Hydraulic Sheet Metal Straightening Machine H Beam Q235

Large Image :  Hydraulic Sheet Metal Straightening Machine H Beam Q235

Product Details:
Place of Origin: China
Brand Name: KAWE
Certification: ISO9001
Model Number: KYJ-60
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15,000-50,000
Packaging Details: export standard package
Delivery Time: 5-30days
Supply Ability: 10sets/day

Hydraulic Sheet Metal Straightening Machine H Beam Q235

Description
Certification: ISO9001 Flange Width: 200-800 Mm
Product Name: STEEL STRUCTURE FABRICAITON LIINE Process: Straightening
Material: Q235 Thickness: 60mm
High Light:

Hydraulic sheet metal straightening machine

,

sheet metal straightening machine H Beam

,

h beam machine Q235

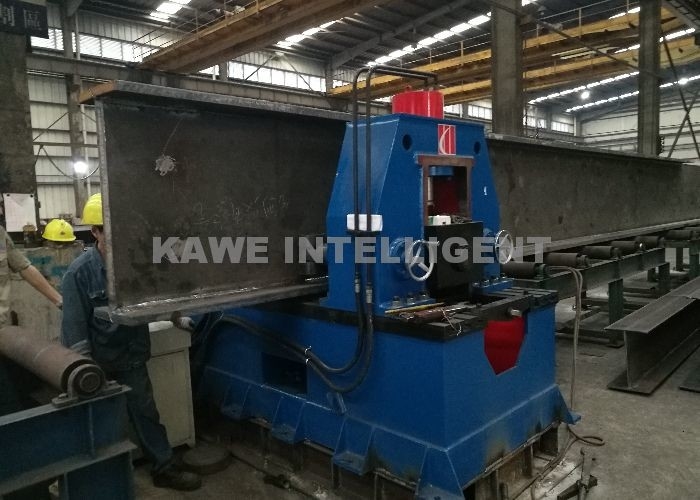

H BEAM HYDRAULIC STRAITHENING MACHINE



Technical process:

H beam flange straightening machine is suitable for straightening the deformation of h beam after welding. Its main transmission adopts the drive motor and big torque reducer, the transmission efficiency is high, the straightening speed is fast. The screwdown device is driven by motor or hydraulic, with large output torque and smooth operation. All the rollers are made of high quality alloy steel and advanced heat treatment to avoid the defects of cracks.

Technical parameters



       model

parameter

KJZ-40 KYJ-40 KYJ-60 KYJ-80
Flange thickness(mm) 6-40 6-60 6-60 8-80
Flange width(mm) 200-800
Web hight(mm) ≥200(small compression roller);≥350(big compression roller)
Workpiece length(mm) 4000-15000
Material of workpiece Q235 Q345
Straightening speed(mm/min) 9000 6300 5200 5200



Hydraulic Sheet Metal Straightening Machine H Beam Q235 0



FAQ

1. What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
2. What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas.
(2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
