Product Details:
|
| Type: | Straightener & Cutter | Product Name: | H Beam Flange Hydraulic Straightening Machine |
|---|---|---|---|
| Color: | Customer Demand | Material: | Steel Material,Metal / Coil,Carbon Steel |
| Function: | Straigthen,straightening H Beam Flange | Application: | H Beams |
| Machine Type: | Motoried | ||
| High Light: | Mechanical steel plate straightening machine,H Beam steel plate straightening machine,h beam production line Q235 |
||

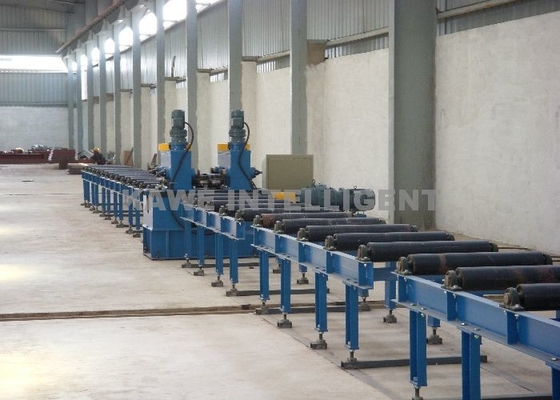

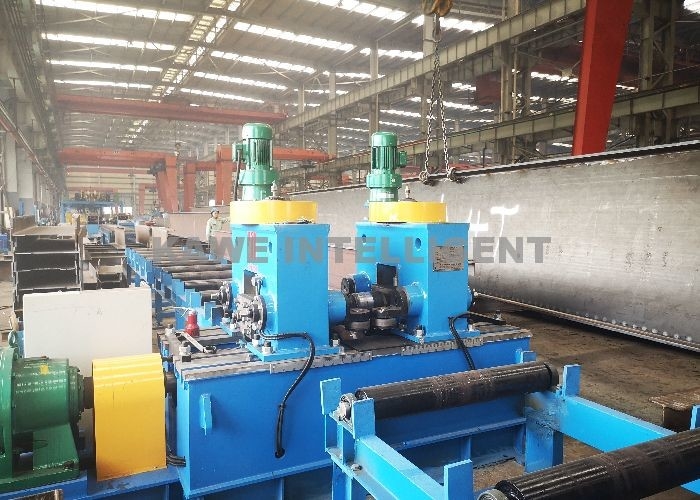

H beam Mechanical Straightening Machine
In the process of welding and heating, the wing plate will inevitably produce angular deformation, the machine is used to correct the flange plate special equipment, the machine is simple and efficient, is widely used in metallurgical construction, metal structure, hydraulic machinery and industrial installation and other industries. The flange straightening machine has the advantages of compact structure, simple operation and easy maintenance. With high efficiency and good quality, it is an ideal equipment for H beam correction.
Main technical parameters of flange straightening machine
| Model parameter | JZ-40A |
| Minimum web height(mm) | 200 |
| Height of flange plate(mm) | 200-800 |
| Thickness of flange plate(mm) | 6-40 |
| straightening speed(mm/min) | 9000 |
| workpiece material | Q235 |
| Motor power(kw) | 11 |
| Installed capacity(kw) | 13.2 |
| overall dimensions(Length x Width x Height)mm | 3500x1100x1900 |
