Product Details:
|
| Model: | Heavy Duty | Mode: | Press Upward |
|---|---|---|---|
| Material: | Q345 | Power: | Hydraulic |
| Flange Thickness: | 40mm | Flange Width: | 200-800 |
| High Light: | 40mm H Beam Straightening Machine,H Beam Straightening Machine 200mm,Hydraulic Straightening Machine 800mm |
||

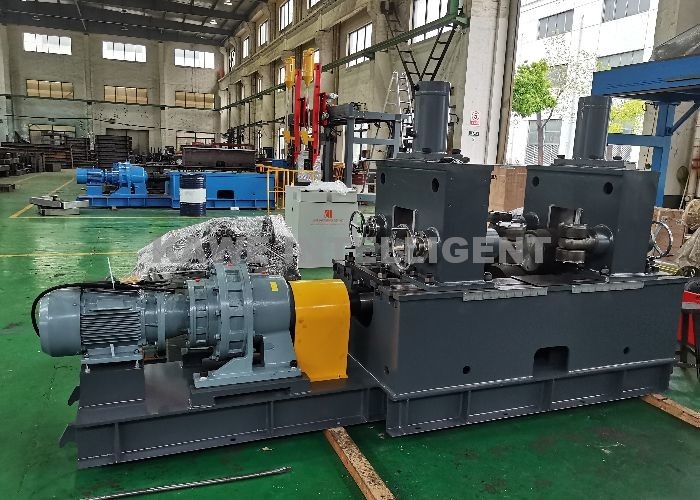

KYJ-40 Hydraulic Straightening Machine
Technical process:
H beam flange straightening machine is suitable for straightening the deformation of h beam after welding. Its main transmission adopts the drive motor and big torque reducer, the transmission efficiency is high, the straightening speed is fast. The screwdown device is driven by motor or hydraulic, with large output torque and smooth operation. All the rollers are made of high quality alloy steel and advanced heat treatment to avoid the defects of cracks.
Technical parameters
|
model parameter |
KJZ-40 | KYJ-60S | KYJ-60 | KYJ-80 |
| Flange thickness(mm) | 6-40 | 6-60 | 6-60 | 8-80 |
| Flange width(mm) | 200-800 | |||
| Web hight(mm) | ≥200(small compression roller)；≥350(big compression roller) | |||
| Workpiece length(mm) | 4000-15000 | |||
| Material of workpiece | Q235 | Q345 | ||
| Straightening speed(mm/min) | 9000 | 6300 | 5200 | 5200 |
FAQ
1. Are you factory or foreign trade company?
We are factory ,do both domestic and froeign market
2. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day. If you need our engineer go to your factory installation and training , that all no problems
3. What's the quality of your products?
For the machine frame all made by ourself, quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
