Product Details:
|
| Model: | Heavy Duty | Mode: | Press Upward |
|---|---|---|---|
| Material: | Q345 | Power: | Hydraulic |
| Flange Width(mm): | 200-800 | Workpiece Length(mm): | 4000-15000 |
| High Light: | Upward Hydraulic H Beam Straightening Machine,H Beam Straightening Machine 4000mm,steel straightening machine 15000mm |
||

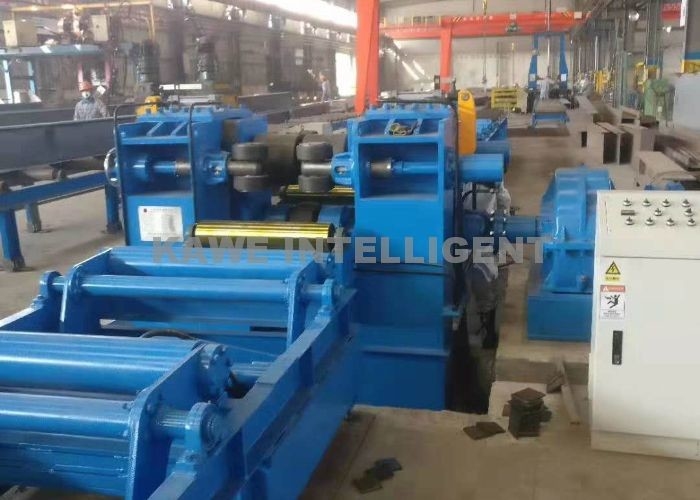

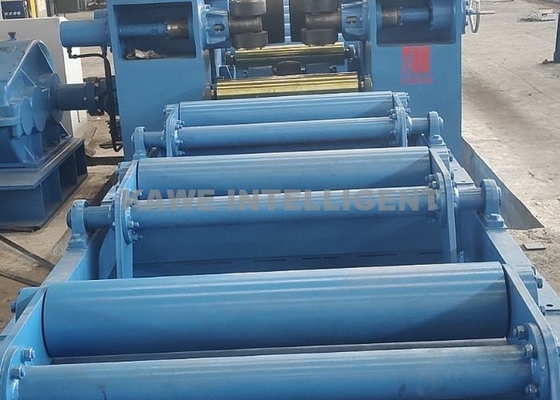

Upward Hydraulic Straightening Machine
Technical process:
H beam flange straightening machine is suitable for straightening the deformation of h beam after welding. Its main transmission adopts the drive motor and big torque reducer, the transmission efficiency is high, the straightening speed is fast. The screwdown device is driven by motor or hydraulic, with large output torque and smooth operation. All the rollers are made of high quality alloy steel and advanced heat treatment to avoid the defects of cracks.
Technical parameters
|
model parameter |
KJZ-40 | KYJ-60S | KYJ-60 | KYJ-80 |
| Flange thickness(mm) | 6-40 | 6-60 | 6-60 | 8-80 |
| Flange width(mm) | 200-800 | |||
| Web hight(mm) | ≥200(small compression roller)；≥350(big compression roller) | |||
| Workpiece length(mm) | 4000-15000 | |||
| Material of workpiece | Q235 | Q345 | ||
| Straightening speed(mm/min) | 9000 | 6300 | 5200 | 5200 |
