Product Details:
|
| Usage: | BOX Beam Welding | Dimensions: | 300-1500mm |
|---|---|---|---|
| Application: | BOX BEAM H BEAM,Box Beam Production Line | Machine Type: | Welding Production Line |
| High Light: | 300mm Box Beam Production Line,Box Beam Production Line 1500mm,electroslag welding equipment |
||

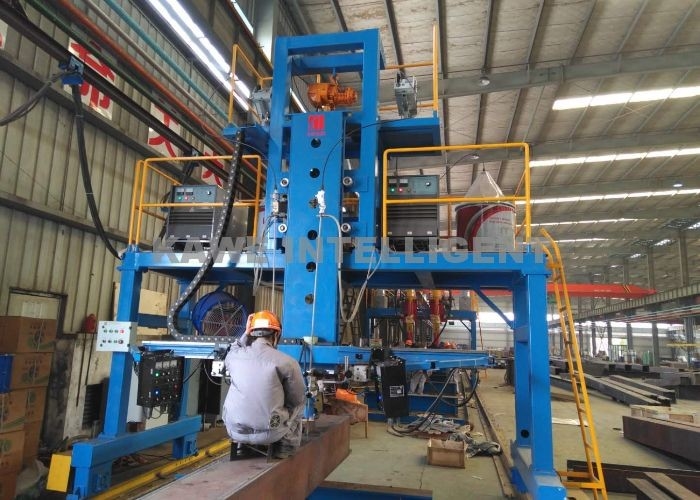

BOX BEAM ELECTRO SLAG WELDING MACHINE
Technical process:
The machine mainly consists of two sets of electricslag system on the crossbeam of the walking mechanism to complete the deep hole welding of the inner diaphragm and the web plate of the box beam, and the electroslag welding can be divided into two types: nozzle fusing type and wire fusing type.
Technical parameters:
|
model item |
KDZ-1200 | KDZ-1500 |
| Applicable box beam size(width) | 300-1200mm | 300-1500mm |
| Applicable box beam size(height) | 300-1200mm | 300-1500mm |
| Applicable box beam size(length) | 3000-15000mm | |
| Main machine moving speed | 3200mm/min | |
| Machine power | 10KW | |
