Product Details:
|
| Certification: | ISO9001 | Flange Width: | 200-800 Mm |
|---|---|---|---|
| Product Name: | STEEL STRUCTURE FABRICAITON LIINE | Process: | Straightening |
| Product Name: | H Beam Straightening Machine | Workpiece Length: | 4000-15000mm |
| High Light: | H Beam Straightening Machine 4000mm,KAWE steel straightener machine,15000mm steel straightener machine |
||

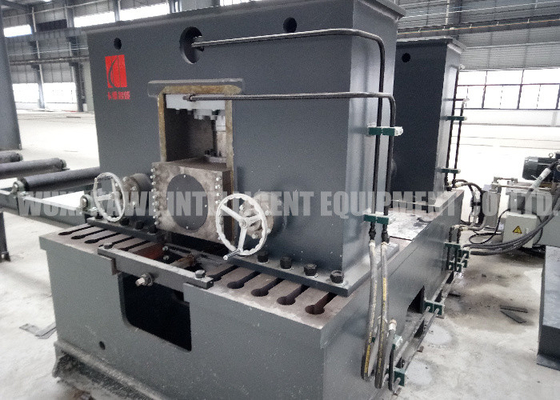

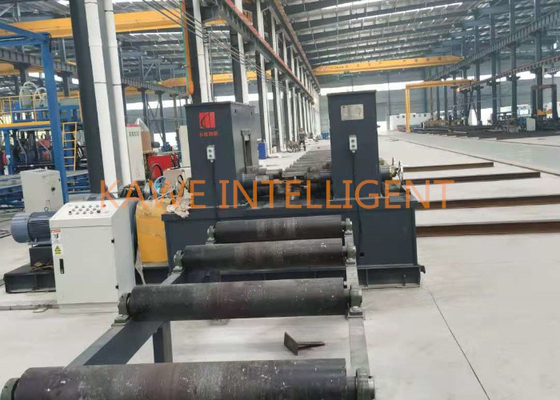

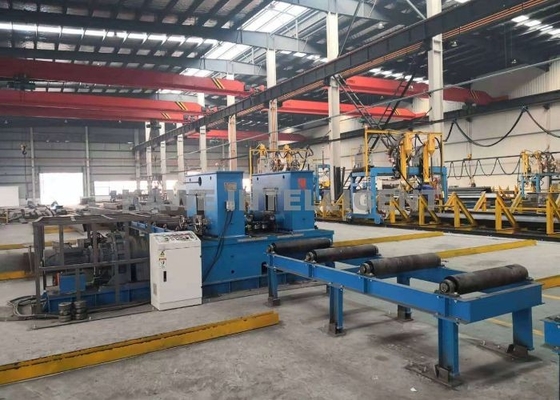

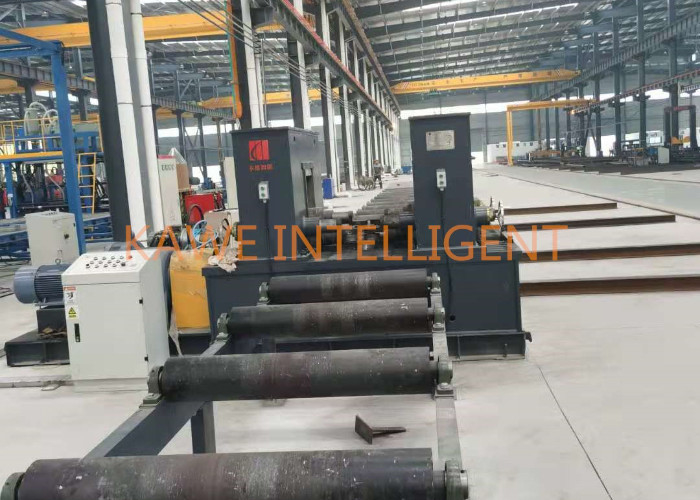

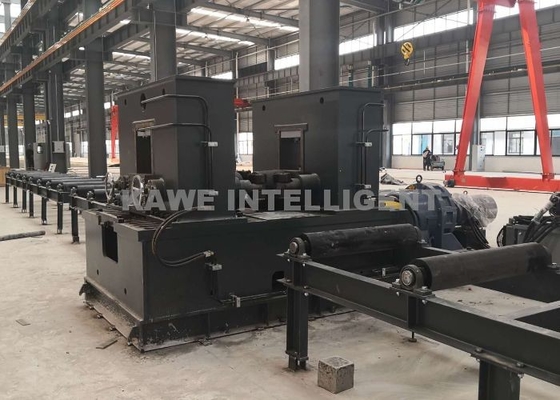

H BEAM HYDRAULIC STRAITHENING MACHINE
Technical process:

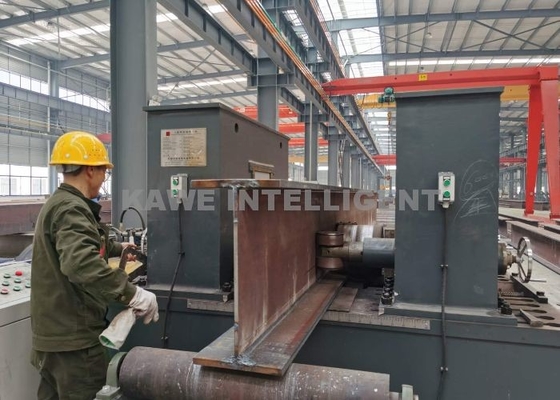

H beam flange straightening machine is suitable for straightening the deformation of h beam after welding. Its main transmission adopts the drive motor and big torque reducer, the transmission efficiency is high, the straightening speed is fast. The screwdown device is driven by motor or hydraulic, with large output torque and smooth operation. All the rollers are made of high quality alloy steel and advanced heat treatment to avoid the defects of cracks.
Technical parameters
|
model parameter |
KJZ-40 | KYJ-40 | KYJ-60 | KYJ-80 |
| Flange thickness(mm) | 6-40 | 6-60 | 6-60 | 8-80 |
| Flange width(mm) | 200-800 | |||
| Web hight(mm) | ≥200(small compression roller)；≥350(big compression roller) | |||
| Workpiece length(mm) | 4000-15000 | |||
| Material of workpiece | Q235 | Q345 | ||
| Straightening speed(mm/min) | 9000 | 6300 | 5200 | 5200 |
