Product Details:
|
| Usage: | Welding Machine,H Beam Welding,Assembly Welding,in Construction And Buildings | After-sales Service Provided: | Commissioning And Training |
|---|---|---|---|
| Type: | Automatic,SAW | Machine Type: | Welding Production Line |
| Product Name: | H Beam Welding Line,h Beam Automatic Assembly Line | Process: | Flat Fillet Weld |
| High Light: | H Beam Pull Through Welding Machine,Pull Through Welding Machine Peb Industry,h beam welding line Peb Industry |
||

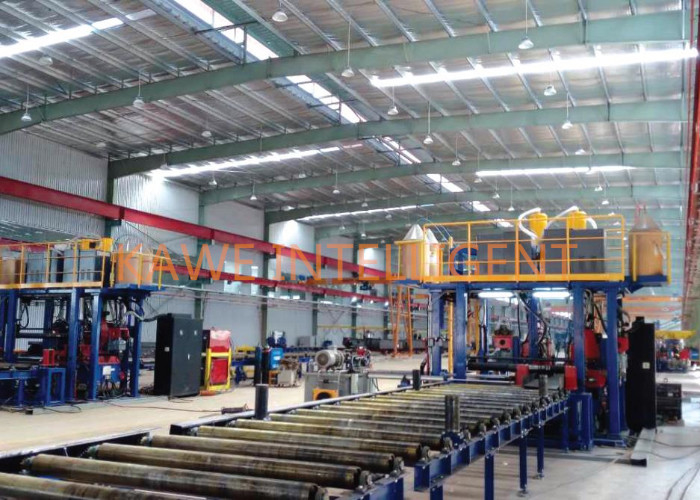

H BEAM PULL THROUGH WELDING MACHINE for PEB industry
Technical process:
This production line includes front turnover feeding roller, end spot welding machine, horizontal welding machine and roller conveyer, which adopts the horizontal position welding form of the three plates of h-beam. Before welded in the main machine , only need alignment spot welding at the end of workpiece (don't need the whole workpiece assembly tack welding), two seams will be welded once. It adopts single - arc double-wire (filament) welding process, the production efficiency can reach more than 4 times of common welding equipment. The production efficiency is higher if dual main machines and automatic flipping system configuration is adopted.
Technical parameters:
|
model parameter |
KWZH-1200 | KWZH-1500 |
| Web height(mm) | 300－1200 | 300－1500 |
| Web thickness (mm) | 5-12 | |
| Flange width (mm) | 150－500 | |
| Flange thickness(mm) | 5-20 | |
| Length of workpiece (mm) | 4000-15000( can be customized) | |
| Welding speed (mm/min) | 300-1500(according to welding process) | |
| Transportation speed (mm/min) | 11000 | |
| Flux recycling capacity(Kg) | 100×2 | |
| Hydraulic system working pressure(MPa) | 10 | |
| Total power of the machine(KW) | 40(without welder) | |
FAQ
1. Are you factory or foreign trade company?
We are factory ,do both domestic and froeign market
2. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day. If you need our engineer go to your factory installation and training , that all no problems
3. What's the quality of your products?
For the machine frame all made by ourself, quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
