Product Details:
|
| Usage: | Welding Machine,H Beam Welding,Assembly Welding,in Construction And Buildings | After-sales Service Provided: | Commissioning And Training |
|---|---|---|---|
| Type: | Automatic,SAW | Machine Type: | Welding Production Line |
| Product Name: | H Beam Welding Line,h Beam Automatic Assembly Line | Welding Power: | Lincoln DC-1000/MZ-1000 |
| Web Height: | 300-1500mm | Flange Width: | 150-600mm |
| High Light: | 1500mm Pull Through Welding Machine,Pull Through Welding Machine H Beam,Horizontal Welding Machine H Beam |
||

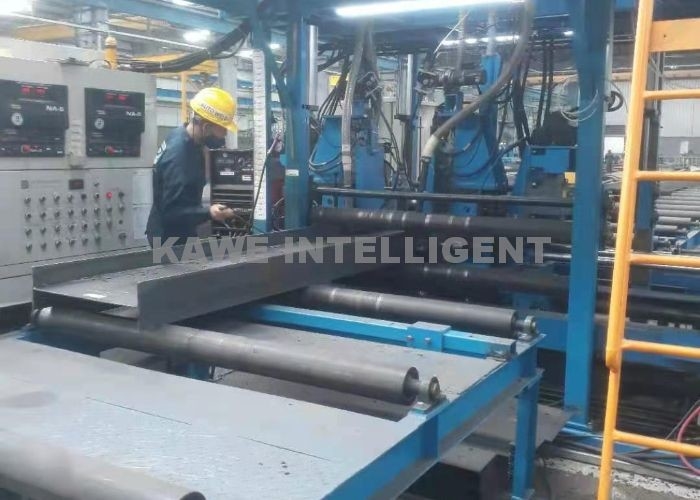

H Beam horizontal welding machine
Technical process:
This production line includes front turnover feeding roller, end spot welding machine, horizontal welding machine and roller conveyer, which adopts the horizontal position welding form of the three plates of h-beam. Before welded in the main machine , only need alignment spot welding at the end of workpiece (don't need the whole workpiece assembly tack welding), two seams will be welded once. It adopts single - arc double-wire (filament) welding process, the production efficiency can reach more than 4 times of common welding equipment. The production efficiency is higher if dual main machines and automatic flipping system configuration is adopted.
Technical parameters:
|
model parameter |
KWZH-1200 | KWZH-1500 |
| Web height(mm) | 300－1200 | 300－1500 |
| Web thickness (mm) | 5-12 | |
| Flange width (mm) | 150－500 | |
| Flange thickness(mm) | 5-20 | |
| Length of workpiece (mm) | 4000-15000( can be customized) | |
| Welding speed (mm/min) | 300-1500(according to welding process) | |
| Transportation speed (mm/min) | 11000 | |
| Flux recycling capacity(Kg) | 100×2 | |
| Hydraulic system working pressure(MPa) | 10 | |
| Total power of the machine(KW) | 40(without welder) | |
FAQ
1. What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
2. What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas.
(2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
