Product Details:
|
| Dimension(l*w*h): | 1500*3000mm | Working Area: | 1500*3000mm |
|---|---|---|---|
| Software: | Fastcam | Product Name: | Cnc Table Cutting Machine |
| Control System: | Hypertherm/Fagor/Fangling/Start | Material: | Steel/Aluminum/stanless Steel |
| High Light: | CNC Table Plasma Cutting Machine,Table Plasma Cutting Machine 1500mm,cnc plasma cutter 3000mm |
||

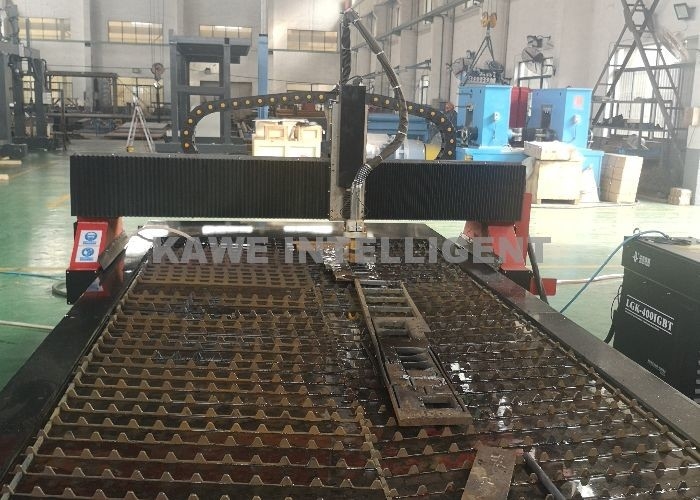

CNC TABLE PLASMA CUTTING MACHINE
Table plasma cutting machine, is suitable for the small plate with high efficiency, high precision cutting. The equipment occupies a small area, no machine installation. It adopts digital control and servo drive and high precision transmission system to realize the cutting of parts with any shape. Different types of plasma can be equipped to meet different cutting process requirement. The automatic nesting software can not only improve the efficiency of programming, but also greatly improve the utilization of materials.
|
Category Parameter |
Cnc plasma |
| Effective cutting width (mm) | 1500;2000;2500;3000;4000(can be customized according to user’s requirement) |
| Effective cutting length (mm) | can be customized according to user’s requirement |
| Plate Thickness (mm) | 2--80(can be customized according to user’s requirement) |
| Cutting speed(mm/min) | 0-5000 |
| Maximum walking speed(mm/min) | 6000 |
| Numerical control system | KAWE/START/Hypertherm/Fangling |
| Servo system | Panasonic /Mitsubishi |
| Plasma system | hypertherm/KAWE(common/high precision/true hole) |
| Nesting software (optional) | Australian Fastcam |
FAQ
1. Are you factory or foreign trade company?
We are factory ,do both domestic and froeign market
2. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day. If you need our engineer go to your factory installation and training , that all no problems
3. What's the quality of your products?
For the machine frame all made by ourself, quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
