Product Details:
|
| Dimension(l*w*h): | 1500*3000mm | Working Area: | 1500*3000mm |
|---|---|---|---|
| Software: | Fastcam | Product Name: | Cnc Table Cutting Machine |
| Control System: | Hypertherm | ||
| High Light: | CNC Table Plasma Cutting Machine,Table Plasma Cutting Machine 1500mm,3000mm cnc plasma table |
||

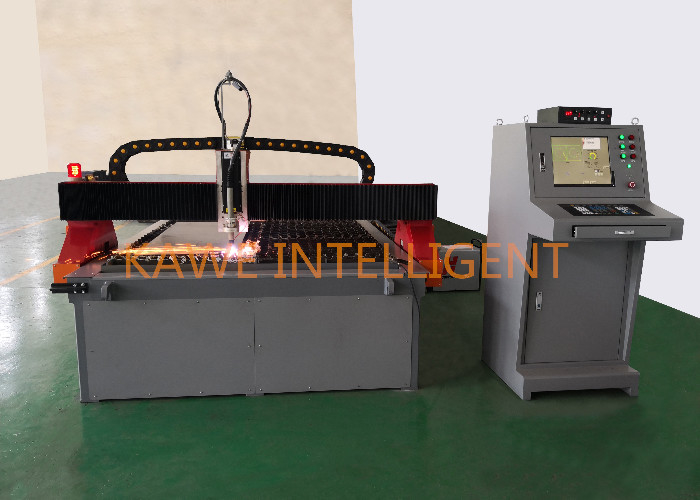

CNC TABLE PLASMA CUTTING MACHINE
Table plasma cutting machine, is suitable for the small plate with high efficiency, high precision cutting. The equipment occupies a small area, no machine installation. It adopts digital control and servo drive and high precision transmission system to realize the cutting of parts with any shape. Different types of plasma can be equipped to meet different cutting process requirement. The automatic nesting software can not only improve the efficiency of programming, but also greatly improve the utilization of materials.
|
Category Parameter |
Cnc plasma |
| Effective cutting width (mm) | 1500;2000;2500;3000;4000(can be customized according to user’s requirement) |
| Effective cutting length (mm) | can be customized according to user’s requirement |
| Plate Thickness (mm) | 2--80(can be customized according to user’s requirement) |
| Cutting speed(mm/min) | 0-5000 |
| Maximum walking speed(mm/min) | 6000 |
| Numerical control system | KAWE/START/Hypertherm/Fangling |
| Servo system | Panasonic /Mitsubishi |
| Plasma system | hypertherm/KAWE(common/high precision/true hole) |
| Nesting software (optional) | Australian Fastcam |
FAQ
1. What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
2. What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas.
(2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
