Product Details:
|
| Application: | Industrial Metal Cutting,Sheet Metal Industry | Software: | Fastnest |
|---|---|---|---|
| Product Name: | Cnc Gas Cutting Machine | Process: | CNC Gas Cutting |
| Cutting Depth: | <200mm | Motor: | Panasonic |
| Torch No.: | 9+2 | Cutting Gas: | Oxygen/Accetylene/Propane |
| High Light: | Gantry Type CNC Gas Cutting Machine,Multi Head CNC Gas Cutting Machine,depth 200mm plasma gas cutting machine |
||

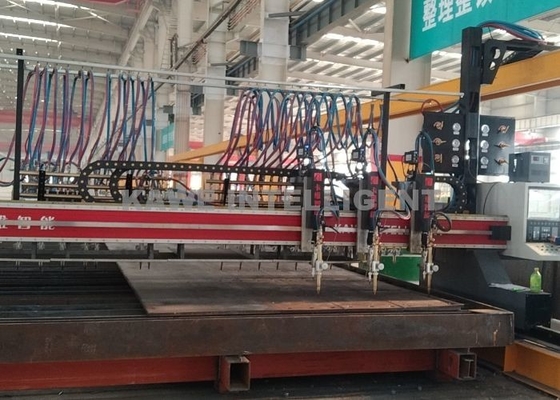

Multi head Gantry Type CNC GAS CUTTING MACHINE
It adopts oxygen + fuel gas (acetylene or propane) as energy, suitable for the economical cutting of plate .The machine adopts digital control + servo drive and high precision transmission system to realize the cutting of parts of any shape. Equipped with single cutting torch or straight tri-torch, it can cut different plate groove. Gantry structure and bilateral drive, achieve higher cutting precision. The automatic nesting software can not only improve the efficiency of programming, but also greatly improve the utilization of materials.
|
Category Parameter |
Strip cutting machine | CNC strip cutting machine |
| Rail span W(mm) | 3000--20000 | |
| Effective cutting width (mm) | W-700 |
strip:W-700 CNC:W-800 |
| Effective cutting length (mm) | Rail length L-2500 | |
| Minimum cutting width(mm) | Strip cutting torch:80；CNC torch:200 | |
| Plate Thickness (mm) | 6-100(single torch can reach 200mm) | |
| Cutting speed(mm/min) | 100-1000 | |
| Maximum walking speed(mm/min) | 2500 | 12000 |
| Numerical control system | / | KAWE/START/Hypertherm |
| Servo system | DC drive | Panasonic /Mitsubishi |
| Straight tri-torch | optional | |
| Nesting software (optional) | Australian Fastcam | |
