Product Details:
|
| Application: | Industrial Metal Cutting,Sheet Metal Industry | Software: | Fastcam |
|---|---|---|---|
| Product Name: | Cnc Cutting Machine | Process: | CNC Gas Cutting |
| Effective Cutting Width: | 3100/4100/5100 | Effective Cutting Length: | Rail Length-2500mm |
| Control System: | Hypertherm/Fagor/Fangling/Start | Material: | Carbon Steel |
| Gas: | Oxygen/Accetylene/Propane | ||
| High Light: | Steel Plate CNC Gas Cutting Machine,CNC Gas Cutting Machine 3100 width,multi torch gas cutting machine 5100 Width |
||

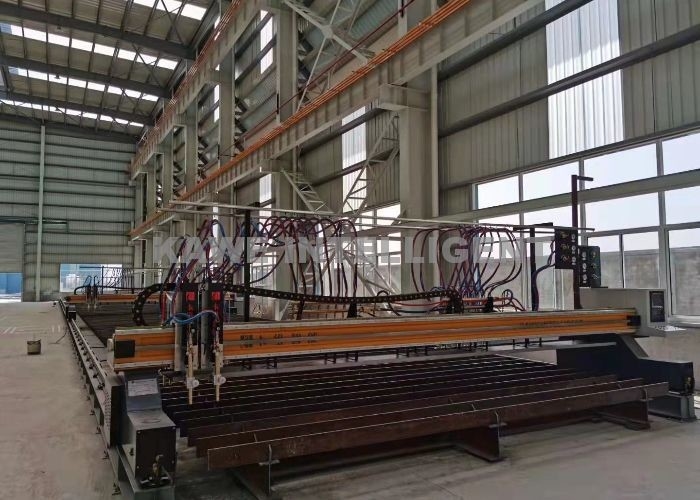

Steel Plate cutting CNC GAS CUTTING MACHINE GSII-4000
It adopts oxygen + fuel gas (acetylene or propane) as energy, suitable for the economical cutting of plate .The machine adopts digital control + servo drive and high precision transmission system to realize the cutting of parts of any shape. Equipped with single cutting torch or straight tri-torch, it can cut different plate groove. Gantry structure and bilateral drive, achieve higher cutting precision. The automatic nesting software can not only improve the efficiency of programming, but also greatly improve the utilization of materials.
|
Category Parameter |
Strip cutting machine | CNC strip cutting machine |
| Rail span W(mm) | 3000--20000 | |
| Effective cutting width (mm) | W-700 |
strip:W-700 CNC:W-800 |
| Effective cutting length (mm) | Rail length L-2500 | |
| Minimum cutting width(mm) | Strip cutting torch:80；CNC torch:200 | |
| Plate Thickness (mm) | 6-100(single torch can reach 200mm) | |
| Cutting speed(mm/min) | 100-1000 | |
| Maximum walking speed(mm/min) | 2500 | 12000 |
| Numerical control system | / | KAWE/START/Hypertherm |
| Servo system | DC drive | Panasonic /Mitsubishi |
| Straight tri-torch | optional | |
| Nesting software (optional) | Australian Fastcam | |
FAQ
1. What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
2. What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas.
(2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
