Product Details:
|
| Certification: | ISO | Condition: | New |
|---|---|---|---|
| Cnc Or Not: | CNC | Warranty: | 12 Months |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,commissioning And Training | Power(w): | 5.5kw |
| Precision: | High Precision | Product Name: | CNC Milling Machine |
| High Light: | 1600mm End Face Milling Machine,2000mm End Face Milling Machine,face milling and end milling 2000mm/min |
||

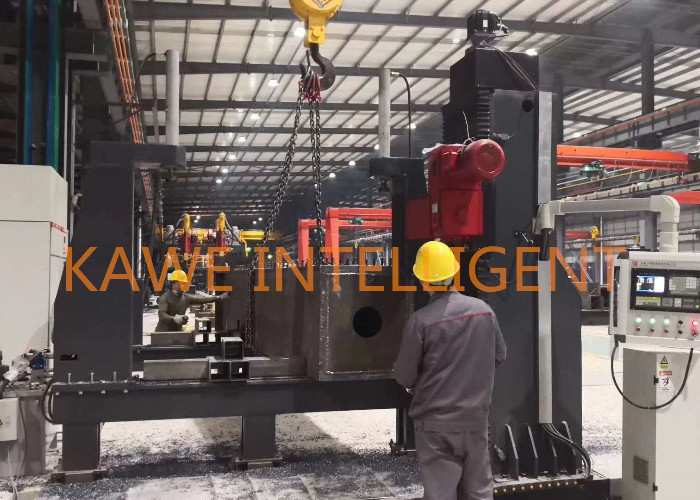

END FACE MILLING MACHINE
Technical process:
The box beam is clamped by the hydraulic support frame, and the milling power head is controlled by PLC to automatically do the plane milling of the box column end.
Technical parameters:
|
Data model Item |
KDX0816 | KDX1520 |
| workpiece height mm | 800 | 1500 |
| workpiece width mm | 1600 | 2000 |
| Maximum milling depth mm | 5 | |
| Horizontal feed speed mm/min | 200～650 | |
| Vertical feed speed mm/min | 200～650 | |
| Milling cutter diameter mm | ￠200(12 tooth) | |
| Horizontal fast forward speed mm/min | 1500～2000 | |
| Vertical fast forward speed mm/min | 1500～2000 | |
| Main milling power KW | 5．5 | |
| Spindle speed rpm | 80～400(8 grade change gear) | |
| Equipment weight t | 9 | 10.5 |
| Main frame size mm | 4500*1200*3200 | 4900*1200*3700 |
