Product Details:
|
| Function: | Multi Function | Type: | Integrated |
|---|---|---|---|
| Usage: | H Beam Automatic Welding | Efficiency: | High Efficient |
| Web Plate Height(mm): | 200－1500 | Web Plate Thickness(mm): | 5-12 |
| High Light: | Multifunction 3 In 1 H Beam Welding Line,3 In 1 H Beam Welding Line 10MPa,automatic welding production line 1500mm |
||

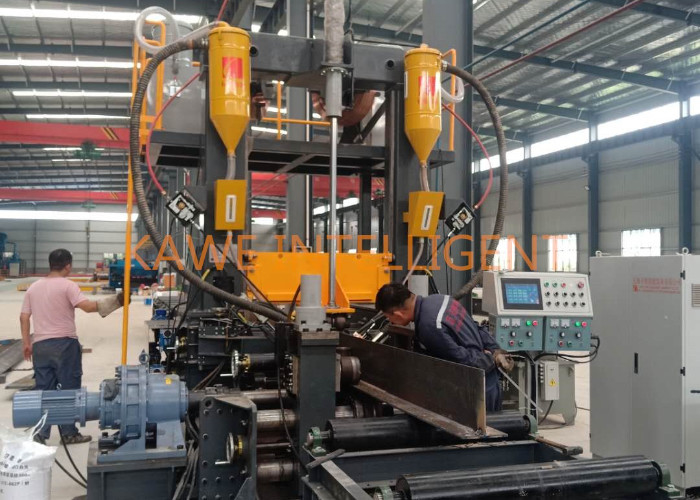

MULTIFUNCTION H BEAM 3 IN 1 MACHINE
Technical process:
The equipment is a three-in-one h beam steel production machine, which is used to do the assembling,welding of H beam,straightening of the angle deformation after flange plate welding in one time ,that is small in area and high in production efficiency.It is especially suitable for the production of H beam with small welding Angle (the foot height is less than 10mm).it is suitable for single - arc double wire (filament) welding process, and can achieve more than 3 times production efficiency of common welding equipment.
Technical parameters:
|
Model Parameters |
KPHJ-1500 |
| Web plate height(mm) | 200－1500 |
| Web plate thickness(mm) | 5-12 |
| Welding leg height(mm) | 10 |
| Flange plate width(mm) | 200－800 |
| Flange plate thickness(mm) | 6－20 |
| Workpiece length(mm) | 4000-15000 |
| Working speed (mm/min) | 300-1500 |
| Transporting Speed (mm/min) | 5000 |
| Flux recovery capacity (Kg) | 100×2 |
| Hydraulic system Working pressure (MPa) | 10 |
| Total power (KW) | 20.5(excluding welding) |
|
Total equipment length (mm) |
33000 |
FAQ
1. What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
2. What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas.
(2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
