Product Details:
Place of Origin: China
Brand Name: KAWE
Certification: ISO9001
Model Number: KZL-1800
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 20,000-30,000
Packaging Details: export standard package
Delivery Time: 5-30days
Supply Ability: 10sets/day

Vertical H Beam Straightening Machine Gantry Automated Welding Machine

Description
Usage: Assembly Certification: ISO9001
Type: Gas Shield Welding Process: Tack Welding
Width: 200-800mm Height: 200-1500mm
High Light:

500mm/Min h beam straightening machine

,

vertical h beam straightening machine

,

Gantry automated welding machine

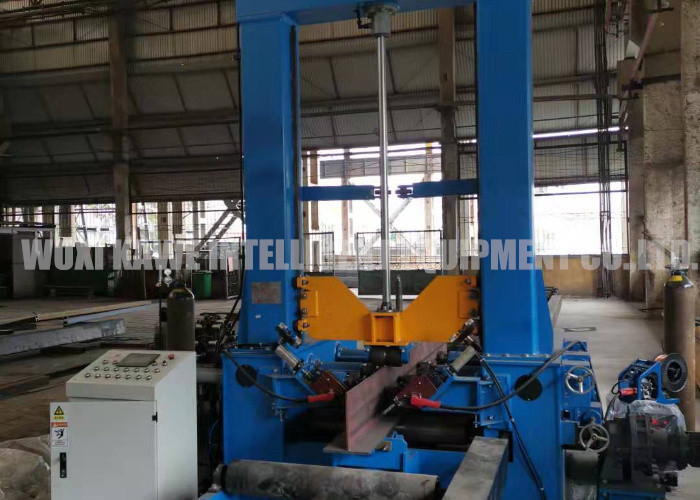

Automatic H BEAM ASSEMBLING MACHINE ZL-1800



The vertical combined with the flange plates , web plate , fastening and Calibrating , positioning , and auto spot welding equipped , all of which accept Japanese Mitsubishi programmable controller and the AC frequency converter so as to increase the productivity one times above comparing with common products , with the features of stable and reliable working state and the welding gun is equipped by the arc-tracing device to ensure the quality spot welding.



Technical process:

This product adopts the international technology of one side mechanical positioning, another side hydraulic pressing, automatically complete the assembly and tack welding of H beam.Compared with similar products, the applicable scope is wider and cost performance is higher, multiple sets of wheel positioning accuracy is higher and can eliminate the phenomenon of fishtail.In view of the heavy duty h-beam, add the auxiliary door frame clamping system, better ensure the assembly precision of the workpiece.



Technical parameters:



Model Web specification Flange specification Length of workpiece(mm) Assembly speed(mm/min) Power KW
thickness height thickness width
KZL-1800 6-32 200-1800 6-40 200-800 4000-15000 500-800 6.2
KZL-2000 6-32 200-2000 6-60 200-800 4000-15000 500-800 7.5
KZL-2500 6-32 200-2500 6-60 200-1000 4000-15000 500-800 7.5



Vertical H Beam Straightening Machine Gantry Automated Welding Machine 0



FAQ

1. What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
2. What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas.
(2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
