Product Details:
|
| Usage: | Assembly | Type: | Gas Shield Welding |
|---|---|---|---|
| Process: | Tack Welding | Width: | 200-800mm |
| Height: | 200-1500mm | Industry: | Beam Fabrication |
| Model: | KZL-1800 | Assembly Speed: | 0.5-6m/min |
| High Light: | Automatic H Beam Assembling Machine,H Beam Assembling Machine Flipping Device,h beam assembly machine 200-1500mm |
||

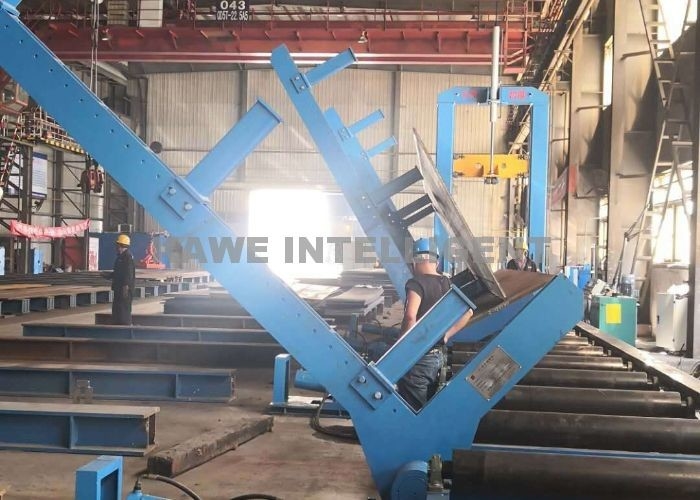

Automatic H BEAM ASSEMBLING MACHINE with Flipping device
Technical process:
This product adopts the international technology of one side mechanical positioning, another side hydraulic pressing, automatically complete the assembly and tack welding of H beam.Compared with similar products, the applicable scope is wider and cost performance is higher, multiple sets of wheel positioning accuracy is higher and can eliminate the phenomenon of fishtail.In view of the heavy duty h-beam, add the auxiliary door frame clamping system, better ensure the assembly precision of the workpiece.
Technical parameters:
| Model | Web specification | Flange specification | Length of workpiece(mm) | Assembly speed(mm/min) | Power KW | ||
| thickness | height | thickness | width | ||||
| KZL-1800 | 6-32 | 200-1800 | 6-40 | 200-800 | 4000-15000 | 500-800 | 6.2 |
| KZL-2000 | 6-32 | 200-2000 | 6-60 | 200-800 | 4000-15000 | 500-800 | 7.5 |
| KZL-2500 | 6-32 | 200-2500 | 6-60 | 200-1000 | 4000-15000 | 500-800 | 7.5 |
FAQ
1. Are you factory or foreign trade company?
We are factory ,do both domestic and froeign market
2. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day. If you need our engineer go to your factory installation and training , that all no problems
3. What's the quality of your products?
For the machine frame all made by ourself, quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
