Product Details:
|
| Function: | Multi Function | Type: | Integrated |
|---|---|---|---|
| Usage: | H Beam Automatic Welding | Efficiency: | High Efficient |
| Web Height: | 200-3500mm | Flange Thickness: | 6-60mm |
| Highlight: | H Beam Automatic Welding Machine,H Beam Automatic Welding Machine,12mm automatic welding line |
||

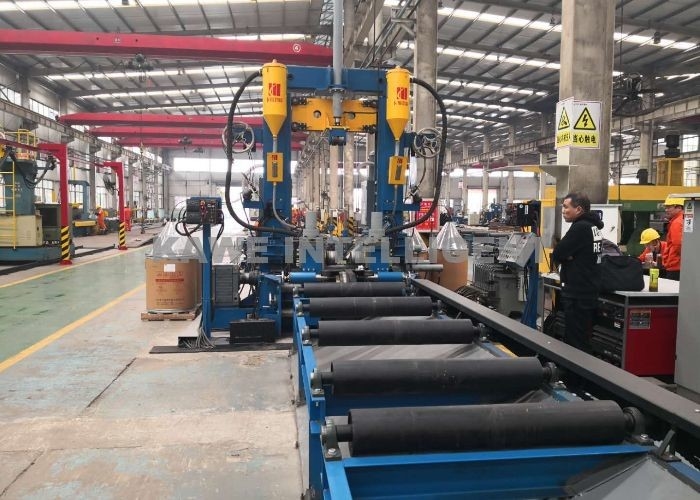

H BEAM Assembly-weld-straighten integrated machine
Technical process:
The equipment is a three-in-one h beam steel production machine, which is used to do the assembling,welding of H beam,straightening of the angle deformation after flange plate welding in one time ,that is small in area and high in production efficiency.It is especially suitable for the production of H beam with small welding Angle (the foot height is less than 10mm).it is suitable for single - arc double wire (filament) welding process, and can achieve more than 3 times production efficiency of common welding equipment.
Technical parameters:
|
Model Parameters |
KPHJ-1500 |
| Web plate height(mm) | 200－1500 |
| Web plate thickness(mm) | 5-12 |
| Welding leg height(mm) | 10 |
| Flange plate width(mm) | 200－800 |
| Flange plate thickness(mm) | 6－20 |
| Workpiece length(mm) | 4000-15000 |
| Working speed (mm/min) | 300-1500 |
| Transporting Speed (mm/min) | 5000 |
| Flux recovery capacity (Kg) | 100×2 |
| Hydraulic system Working pressure (MPa) | 10 |
| Total power (KW) | 20.5(excluding welding) |
|
Total equipment length (mm) |
33000 |
