Gantry CNC Steel Plate Cutting Machine CNC Plasma Plate Cutting Machine 0-5000mm/Min

Gantry CNC Steel Plate Cutting Machine CNC Plasma Plate Cutting Machine 0-5000mm/Min
Gantry CNC Steel Plate Cutting Machine CNC Plasma Plate Cutting Machine 0-5000mm/Min

Large Image :  Gantry CNC Steel Plate Cutting Machine CNC Plasma Plate Cutting Machine 0-5000mm/Min

Product Details:
Place of Origin: China
Brand Name: KAWE
Certification: CE
Model Number: KZS-4000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 15,000-30,000
Packaging Details: export standard package
Supply Ability: 10sets/day

Gantry CNC Steel Plate Cutting Machine CNC Plasma Plate Cutting Machine 0-5000mm/Min

Description
Cutting Speed: 0-8000mm/min Product Name: Cnc Cutting Machine
Control System: Hypertherm Dimension(l*w*h): Customized
Plasma Power: Hypertherm Motors: Panasonic
Gears: Germany Neugart Software: FastCAM
Torches No.: 1+3 Material: Steel/Aluminum/stanless Steel
High Light:

Gantry CNC steel plate cutting machine

,

CNC steel plate cutting machine 5000mm Min

,

plasma cutter and table Hypertherm

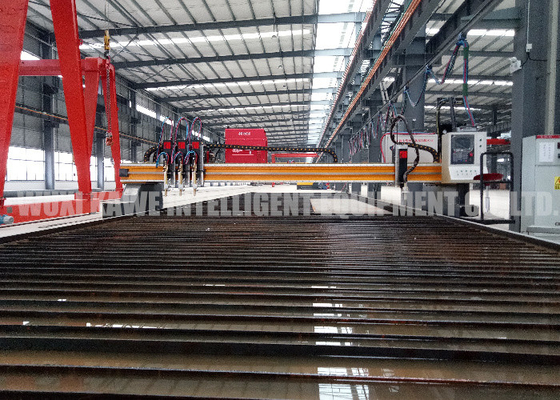

KS-4000D Gantry CNC PLASMA CUTTING MACHINE for steel plate



This machine adopts plasma as the cutting source, suitable for high efficiency and high precision cutting of the plate. The machine adopts digital control and servo drive and high precision transmission system to realize the cutting of parts with any shape. It can meet different cutting process requirement with numerical control gas and strip gas cutting. Gantry structure and bilateral drive, achieve higher cutting precision. The automatic nesting software can not only improve the efficiency of programming, but also greatly improve the utilization of materials.



      Category

Parameter

CNC plasma CNC plasma+strip cutting
Rail span W(mm) 3000--20000
Effective cutting width (mm) W-700

strip:W-700

CNC:W-800

Effective cutting length (mm) Length L-2500
Minimum cutting width(mm) CNC torch:200

strip:80

CNC:250

Thickness of plate (mm) 2--80
Cutting speed(mm/min) 0-5000
Maximum walking speed(mm/min) 12000
Numerical control system KAWE/Start/Hypertherm
Servo system panasonic/Mitsubishi
Plasma system Hypertherm / victor(common/high precision/true hole)
Nesting software(optional) Australian Fastcam



Gantry CNC Steel Plate Cutting Machine CNC Plasma Plate Cutting Machine 0-5000mm/Min 0



FAQ

1. Are you factory or foreign trade company?

We are factory ,do both domestic and froeign market
2. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day. If you need our engineer go to your factory installation and training , that all no problems
3. What's the quality of your products?
For the machine frame all made by ourself, quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
